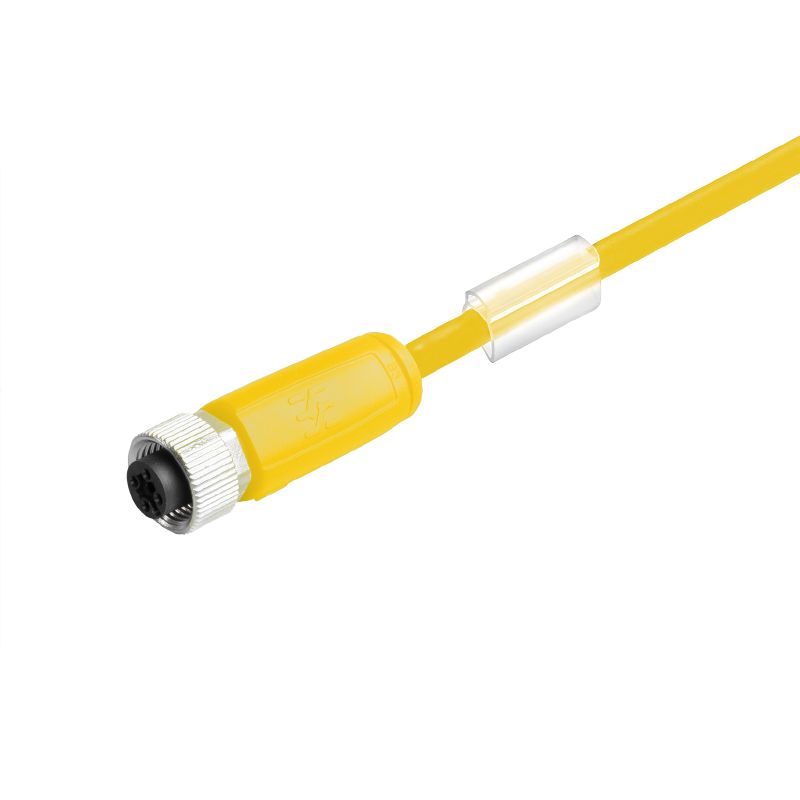

2812750300 - 3m M12 Male-Female Connector for Sensors & Actuators

2812750300 - 3m M12 Male-Female Connector for Sensors & Actuators

SKU: SKU: 2812750300   Download PDF

Select a Variant:
  • 2812750300 - 3m M12 Male-Female Connector for Sensors & Actuators
Qty:
Regular price Now $11.09   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $11.09 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile 3-meter M12 male-female socket, expertly crafted for sensor and actuator applications This socket is designed without shielding or an LED indicator, promoting simplicity and reliability The outer sheath consists of durable PUR material and is halogen-free, prioritizing safety and environmental consciousness Weighing only 1584 grams, this lightweight component is an excellent choice for various setups, ensuring easy handling and installation.

Features and Benefits:

    •Compliant with RoHS exemption.

    •Color coding includes brown, blue, black, white, grey.

    •Number of poles: 5.

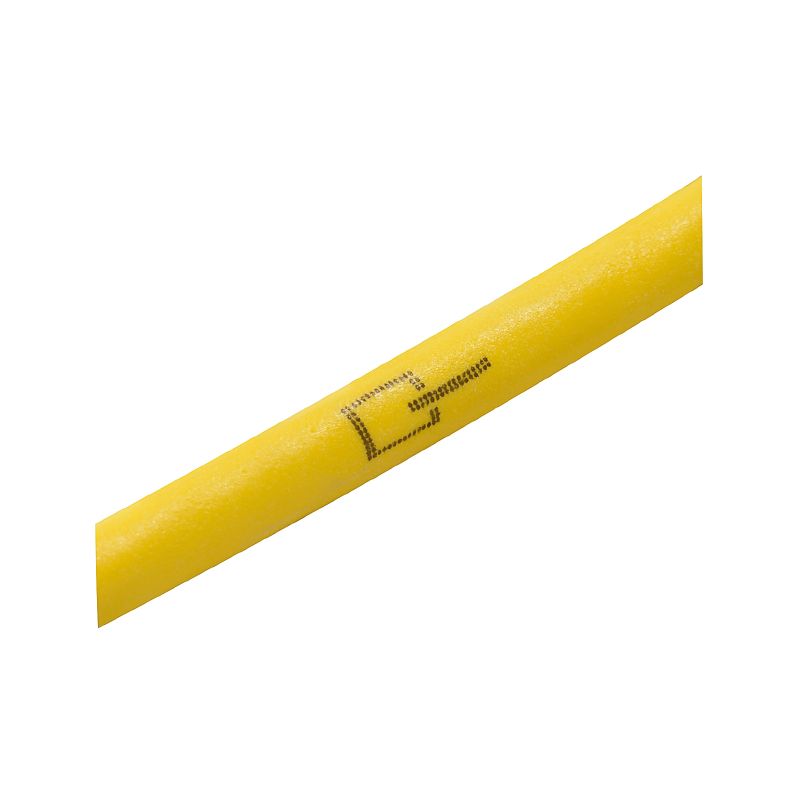

    •Cable material is PUR and resistant to oils.

    •Temperature range for moving applications is -40 to 105 °C.

    •Temperature range for stationary applications is -30 to 105 °C.

    •IP65, IP66, IP67, and IP68 protection when screwed in.

    •Gold-plated contact surface.

Specifications:

 Cable length 3 m
 Core cross-section 0.34 mm²
 Outside diameter 5.2 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 60 V
 Bending cycles 10 Mio
 Temperature range of housing -25…+85 °C
 Connection thread M12
 Tightening torque M12: 0.8 - 1.2 Nm
 Sheath material PUR
