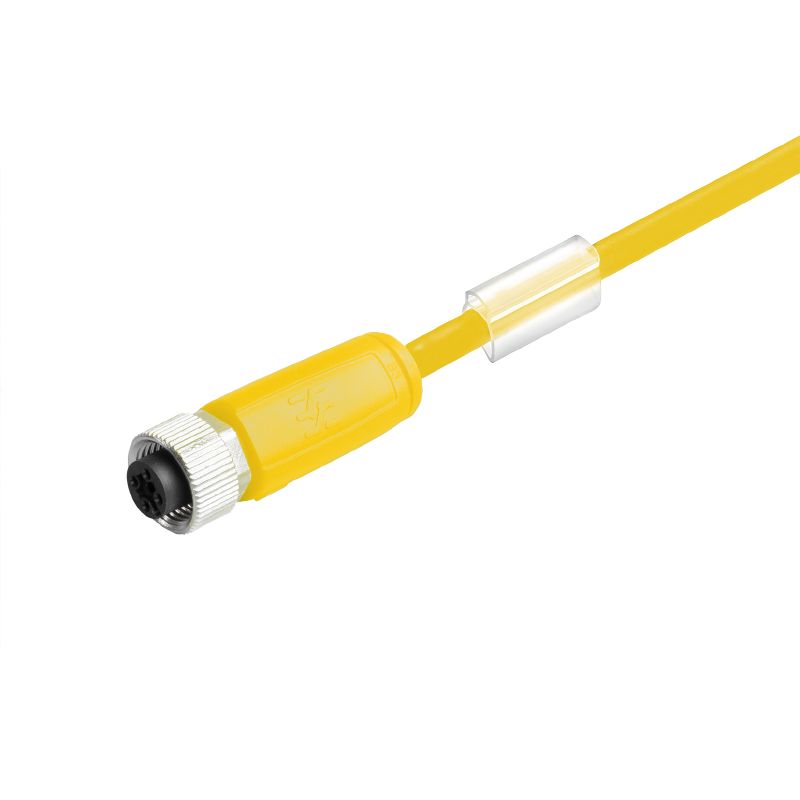

2812750060 - 0.6m M12 5-Pole Sensor/Actuator Line, PUR Sheath

2812750060 - 0.6m M12 5-Pole Sensor/Actuator Line, PUR Sheath

SKU: SKU: 2812750060   Download PDF

Select a Variant:
  • 2812750060 - 0.6m M12 5-Pole Sensor/Actuator Line, PUR Sheath
Qty:
Regular price Now $7.23   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $7.23 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This sensor/actuator line is equipped with an M12 connector featuring five poles and measures 06 meters in length It is designed with a straight female socket configuration and is constructed from halogen-free PUR material Notably, this item is unshielded and does not include an LED indicator, making it a straightforward solution for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Non-shielded with no LED.

    •Halogen-free sheath material.

    •Rated for a nominal current of 4A and voltage of 60V.

    •Suitable for cable carriers and resistant to welding sparks.

    •High bending cycles of 10 million.

    •Temperature resistant in moving conditions up to 105 °C.

Specifications:

 Cable length 0.6 m
 Number of poles 5
 Sheath material PUR
 Bending cycles 10 Mio
 Temperature range, moving -40...105 °C
 Temperature range, stationary -30...105 °C
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Core cross-section 0.34 mm²
 Contact surface Gold-plated
 Housing main material PUR
 Tightening torque M12: 0.8 - 1.2 Nm
 Resistance to oils in accordance with IEC 60811:404
 Welding spark resistance Yes
