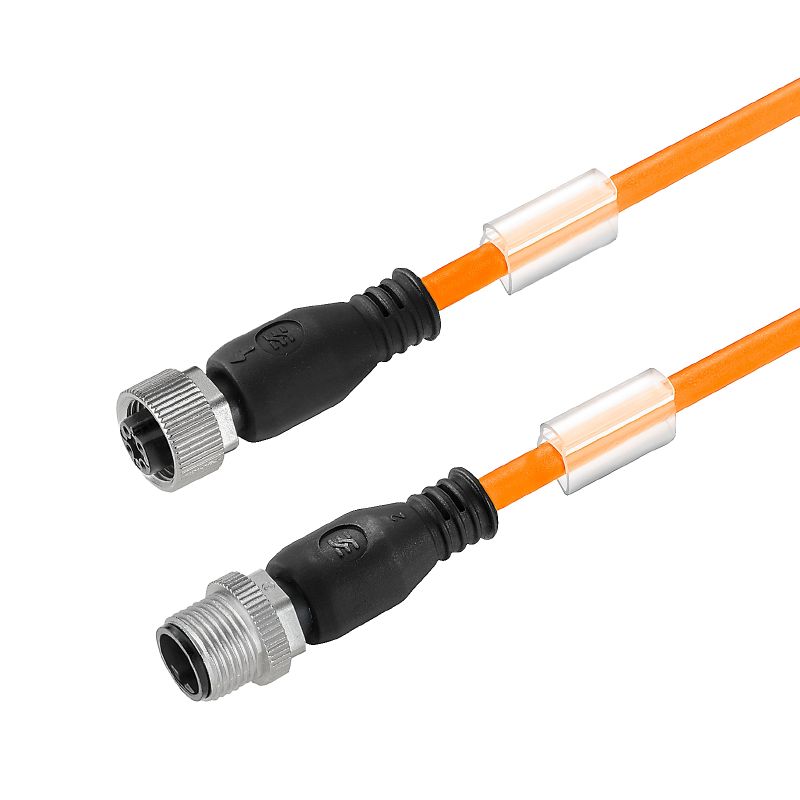

2812700300 - 3m M12 Sensor Actuator Line with 5 Poles, PUR Sheath

2812700300 - 3m M12 Sensor Actuator Line with 5 Poles, PUR Sheath

SKU: SKU: 2812700300   Download PDF

Select a Variant:
  • 2812700300 - 3m M12 Sensor Actuator Line with 5 Poles, PUR Sheath
Qty:
Regular price Now $17.35   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $17.35 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover this versatile sensor/actuator line, featuring a variable M12 / M12 configuration that boasts five poles With a generous cable length of 3 meters, this product includes straight connectors without shielding or integrated LEDs Built with a durable PUR sheath, it meets RoHS compliance and contains no halogens Designed to operate within a broad temperature range from -40 to +80 °C while stationary, it’s the reliable choice for your connectivity needs.

Features and Benefits:

    •Only suitable for cable carriers.

    •Resistant to welding beads.

    •LABS-free.

    •Torsion resistant up to 360°/m.

    •Gold-plated contact surface.

Specifications:

 Bending cycles 10 Mio
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Cable length 3 m
 Core cross-section 0.34 mm²
 Number of poles 5
 Outer diameter 5.2 mm ± 0.2 mm
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Housing main material PUR
 Sheath material PUR
