2812690300 - M12 5-Pole Sensor Actuator Line, 3m PUR Cable

2812690300 - M12 5-Pole Sensor Actuator Line, 3m PUR Cable

SKU: SKU: 2812690300   Download PDF

Select a Variant:
  • 2812690300 - M12 5-Pole Sensor Actuator Line, 3m PUR Cable
Qty:
Regular price Now $11.09   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $11.09 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

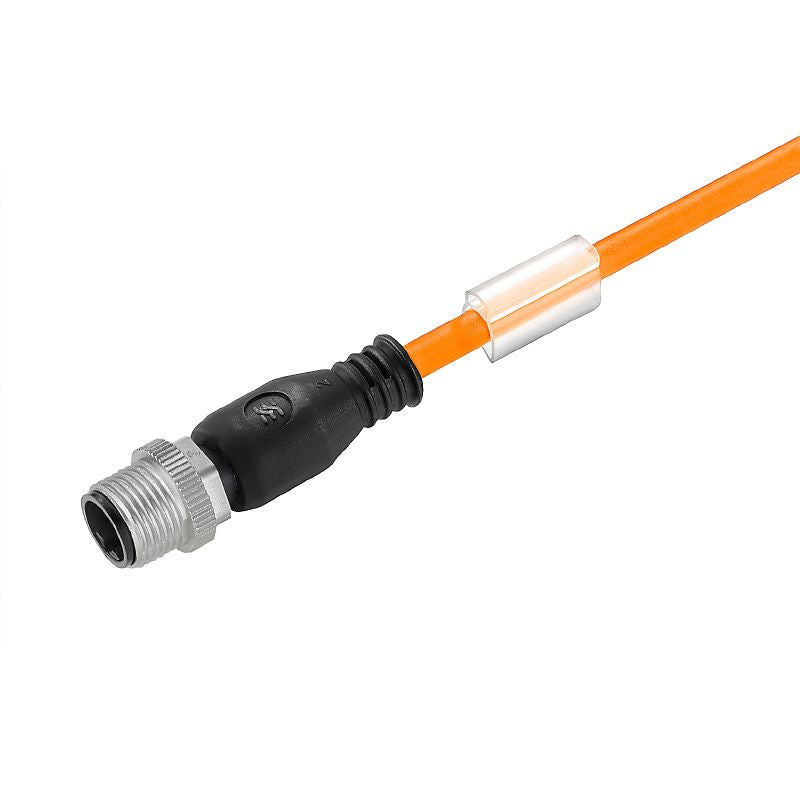

Introducing a versatile sensor/actuator line equipped with a five-pole M12 connector This 3-meter long cable features a straight pin design, ideal for various applications Note that it comes unshielded and does not have an LED indicator The sheath is crafted from halogen-free PUR material, ensuring safety and reliability in use.

Features and Benefits:

    •Bending cycles of 10 million.

    •Resistant to welding beads.

    •Suitable for cable carriers.

    •Torsion resistance up to 360°/m.

    •Welding spark resistant.

    •Gold-plated contact surface.

    •IP65/IP66/IP67/IP68 protection when screwed in.

    •Nominal current rating of 4A.

    •Nominal voltage rating of 24V.

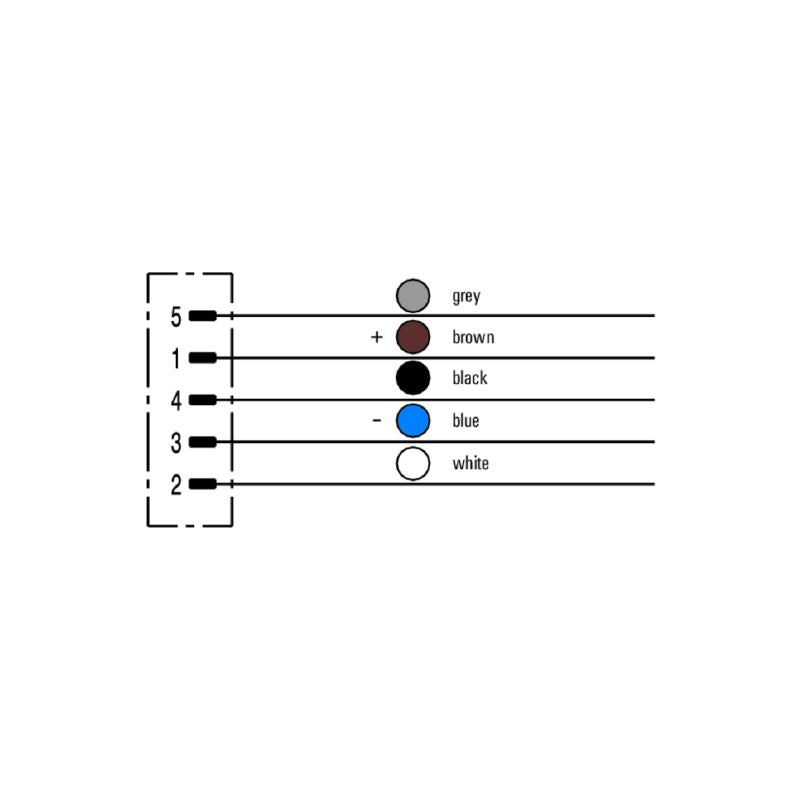

    •Color coding available in brown, black, blue, white, and grey.

Specifications:

 Core cross-section 0.34 mm²
 Outside diameter 5.2 mm ± 0.2 mm
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Temperature range of housing -25…+85 °C
 Connection thread M12
 AF size 12 mm
 Coding A-coded
 Nominal voltage 24 V
 Pollution severity 3
 UL File Number E307231
