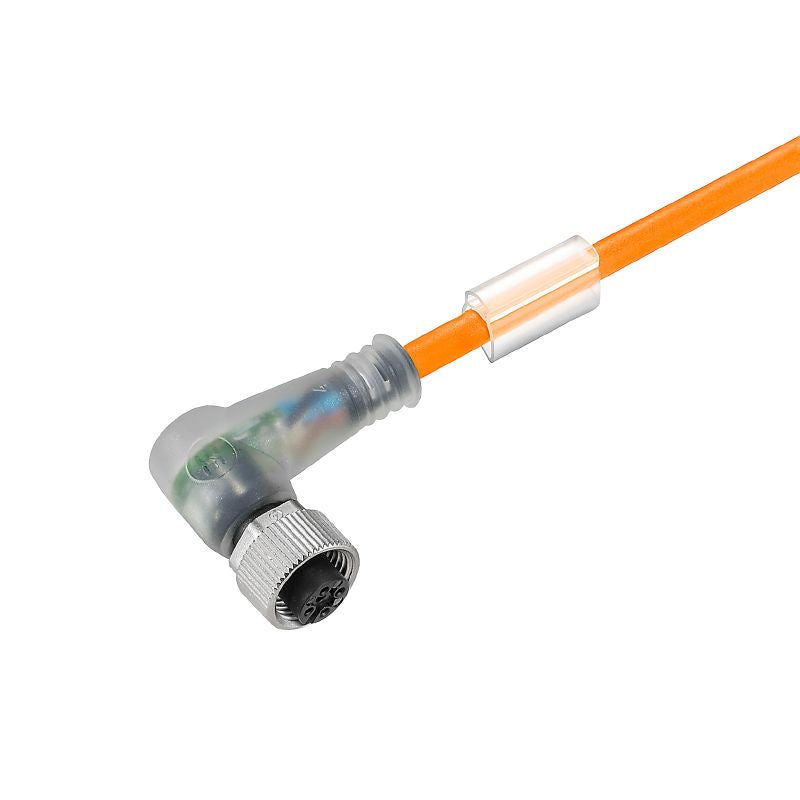

2812670500 - 5m Angled M12 Socket for Sensors, 5-Pole, ROHS Compliant

2812670500 - 5m Angled M12 Socket for Sensors, 5-Pole, ROHS Compliant

SKU: SKU: 2812670500   Download PDF

Select a Variant:
  • 2812670500 - 5m Angled M12 Socket for Sensors, 5-Pole, ROHS Compliant
Qty:
Regular price Now $18.01   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $18.01 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Elevate your sensor and actuator setups with this innovative angled, shielded socket With 5 poles and a robust length of 5 meters, this product is designed for optimal performance Crafted from halogen-free PUR material, it meets ROHS compliance standards for safe use Plus, the integrated LED feature enhances its functionality, making it an excellent choice for your automation needs.

Features and Benefits:

    •Includes LED.

    •Non-shielded design.

    •Compliant with environmental standards.

Specifications:

 Bending cycles 10 Mio
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Cable length 5 m

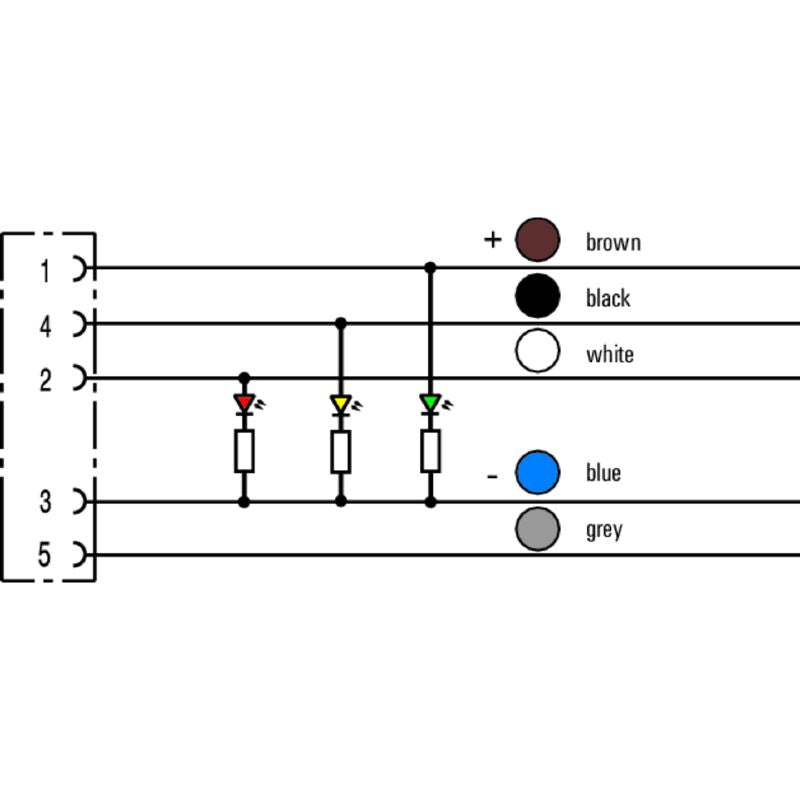

 Colour coding brown, black, blue, white, grey
 Core cross-section 0.34 mm²
 Halogen No
 LABS-free Yes
 Number of poles 5
 Outside diameter 5.2 mm ± 0.2 mm
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP65, IP66, IP67, IP68 when screwed in
