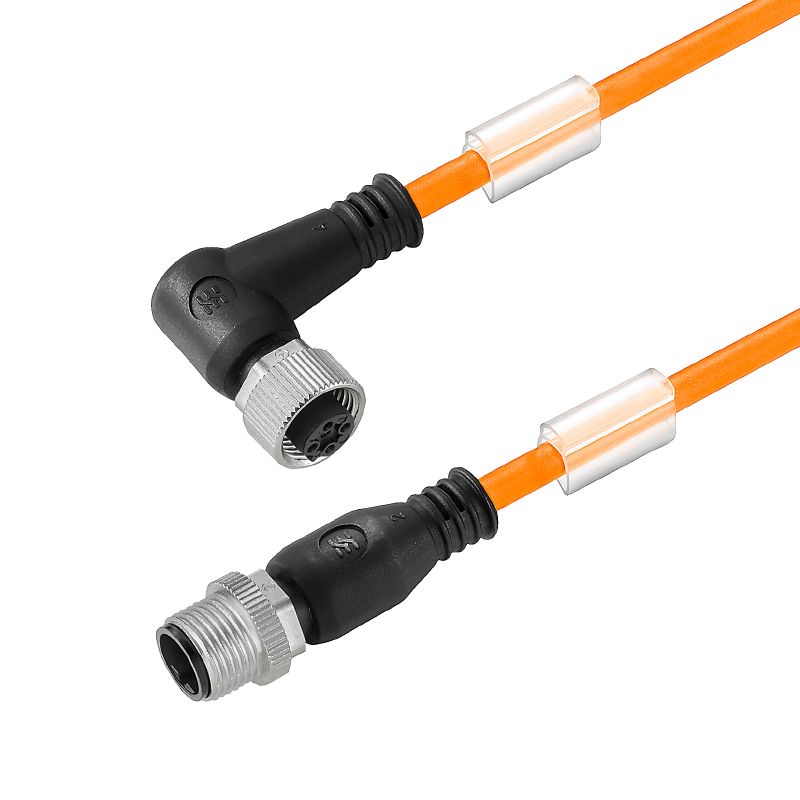

2812631000 - 10m Shielded M12 Sensor/Actuator Line with 4 Poles

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIL-M12GM12W-4-10TOV, a sophisticated component in our sensor and actuator range This model features a robust M12 connector with 4 poles and a generous 10-meter length Constructed with a durable polyurethane (PUR) sheath, it provides excellent shielding for reliable performance This product adheres to RoHS standards, including an exemption, and holds a cULus certification under number E307231, ensuring its compliance with safety regulations.

Features and Benefits:

•Compliant with RoHS with exemption.

•Lab tested for durability with 10 million bending cycles.

•Color coding includes brown, blue, black, and white.

•Resistant to welding beads and welding spark.

•Suitable for cable carriers.

•Nominal current of 4 A and nominal voltage of 24 V.

•Rated with an IP65, IP66, IP67, and IP68 protection degree when installed.

•Temperature range for moving applications is -25 to 80 °C.

•Temperature range for stationary applications is -40 to 80 °C.

Specifications:
