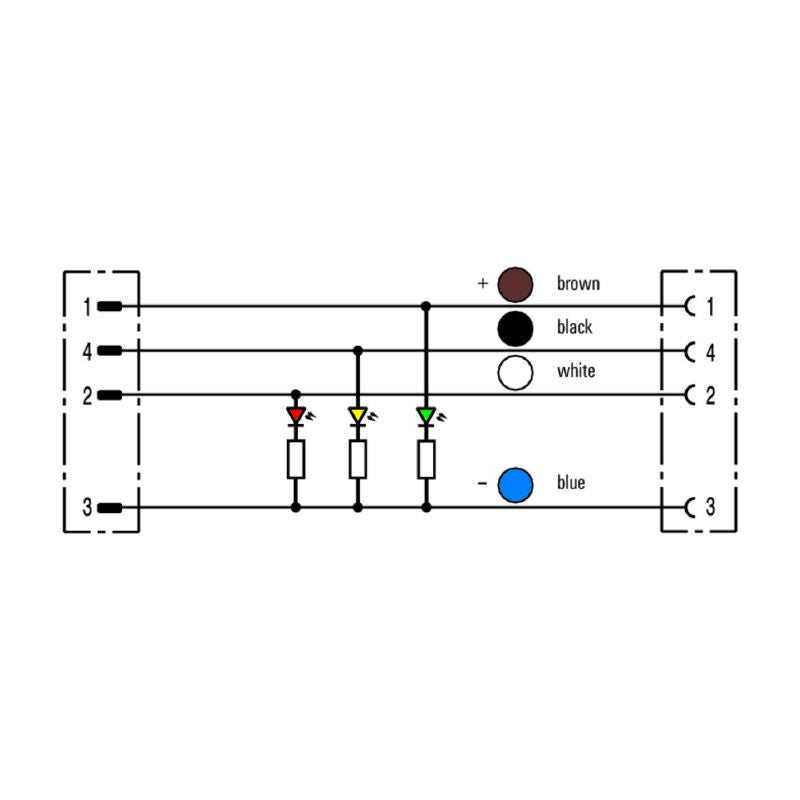

2812610060 - 0.6m M12 4-Pole Sensor/Actuator Line with LED

2812610060 - 0.6m M12 4-Pole Sensor/Actuator Line with LED

SKU: SKU: 2812610060   Download PDF

Select a Variant:
  • 2812610060 - 0.6m M12 4-Pole Sensor/Actuator Line with LED
Qty:
Regular price Now $15.94   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $15.94 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile sensor/actuator cable equipped with M12 connectors This 06-meter long line features 4 poles and is designed without shielding, enhancing its simplicity An integrated LED provides visual feedback, while the sheath, crafted from halogen-free PUR material, ensures safety and durability in various applications.

Features and Benefits:

    •LED included.

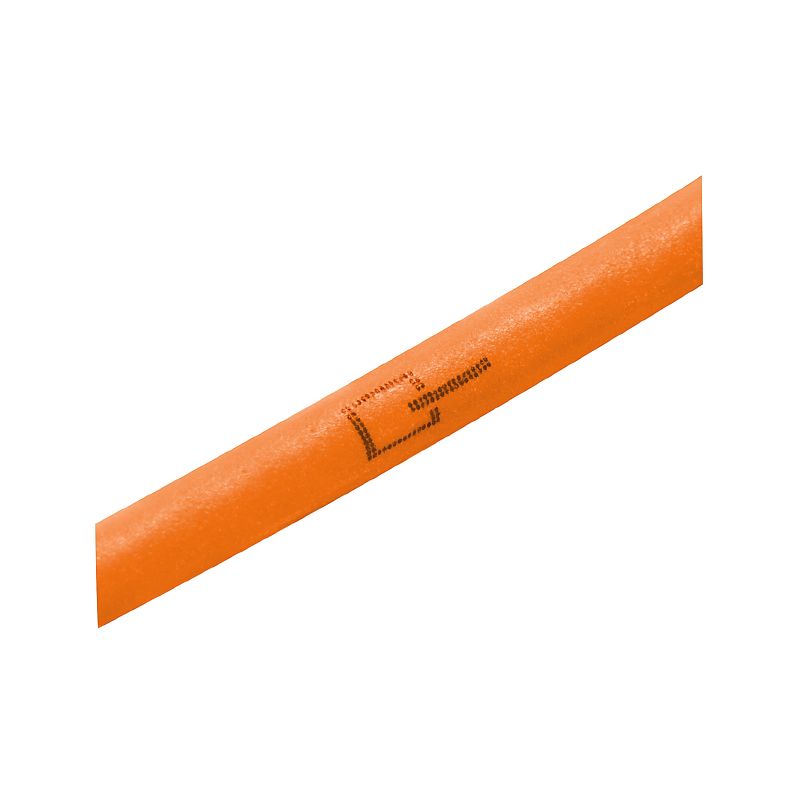

    •Sheath material is PUR.

    •LABS-free.

    •Resistant to welding beads.

    •Suitable for cable carriers.

Specifications:

 Bending cycles 10 Mio
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Cable length 0.6 m
 Core cross-section 0.34 mm²
 Core in accordance with UL AWM style 10995 (80 °C / 300 V)
 Number of poles 4
 Outside diameter 4.9 mm ± 0.2 mm
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Torsion resistance 360 °/m
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Temperature range of housing -25…+85 °C
