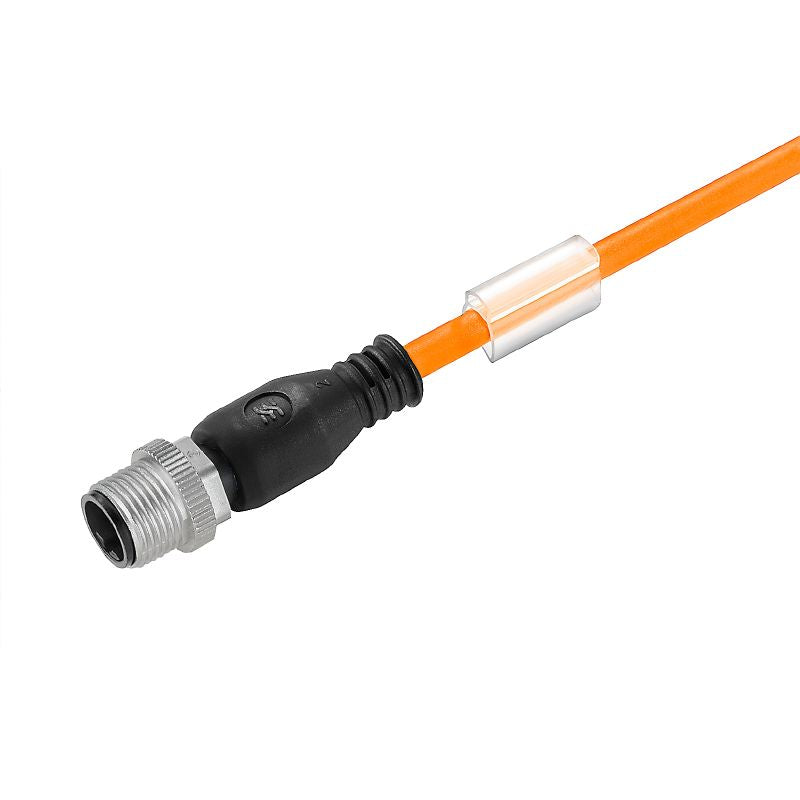

2812550200 - 2m Non-Shielded M12 4-Pole Sensor/Actuator Line

2812550200 - 2m Non-Shielded M12 4-Pole Sensor/Actuator Line

SKU: SKU: 2812550200   Download PDF

Select a Variant:
  • 2812550200 - 2m Non-Shielded M12 4-Pole Sensor/Actuator Line
Qty:
Regular price Now $8.50   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $8.50 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIL-M12G-4-20TOV, a versatile sensor/actuator cable designed for M12 connections featuring four poles and extending to a length of 2 meters This cable is equipped with a straight pin configuration and is non-shielded, ensuring straightforward application without added complications Crafted from halogen-free PUR material, it promotes safety in various environments Weighing in at 110 grams, this product is a reliable choice for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS and REACH regulations.

    •Resistant to welding beads.

    •Suitable for cable carriers.

    •LABS-free.

Specifications:

 Bending cycles 10 Mio
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Cable length 2 m
 Core cross-section 0.34 mm²
 Contact surface Gold-plated
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Outer diameter 4.9 mm ± 0.2 mm
 Housing main material PUR
