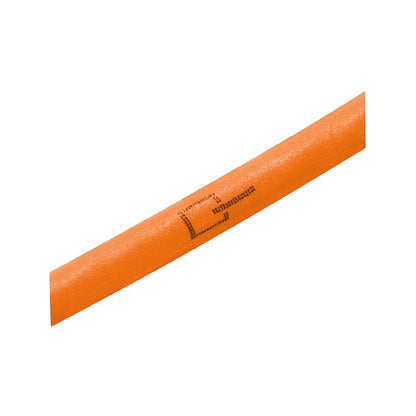

2812540800 - M12 4-Pole Actuator Socket, 8m PUR Cable

2812540800 - M12 4-Pole Actuator Socket, 8m PUR Cable

SKU: SKU: 2812540800   Download PDF

Select a Variant:
  • 2812540800 - M12 4-Pole Actuator Socket, 8m PUR Cable
Qty:
Regular price Now $16.88   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $16.88 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover this advanced sensor and actuator component, equipped with an M12 connector featuring 4 poles, and a generous cable length of 8 meters The angled socket design is streamlined for easy installation and use, offering a reliable connectivity solution without shielding or LED indicators Crafted from halogen-free PUR material, this product meets RoHS standards and adheres to various compliance exemptions, making it a smart choice for your electronics needs.

Features and Benefits:

    •Halogen free.

    •LABS-free.

    •Suitable for cable carriers.

    •Welding spark resistance.

Specifications:

 Bending cycles 10 Mio
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Cable length 8 m
 Core cross-section 0.34 mm²
 Number of poles 4
 Outer diameter 4.9 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 24 V
 Pollution severity 3
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Temperature range of housing -25...+85 °C
 Connection thread M12
 Contact surface Gold-plated
 Housing main material PUR
