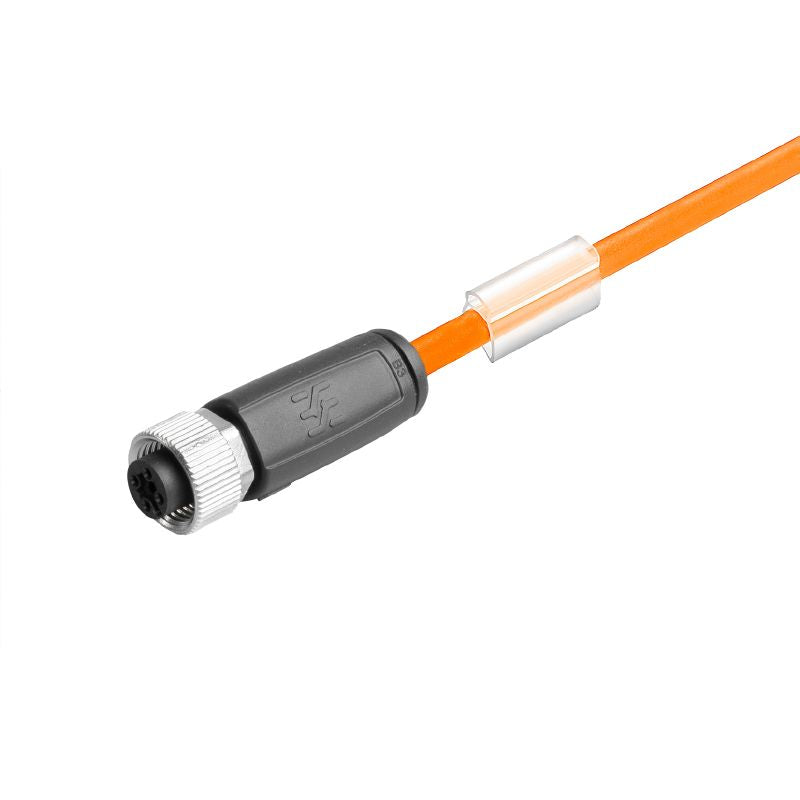

2812520200 - 2m M12 Sensor/Actuator Line, 4 Poles, Halogen-Free

2812520200 - 2m M12 Sensor/Actuator Line, 4 Poles, Halogen-Free

SKU: SKU: 2812520200   Download PDF

Select a Variant:
  • 2812520200 - 2m M12 Sensor/Actuator Line, 4 Poles, Halogen-Free
Qty:
Regular price Now $8.50   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $8.50 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile sensor/actuator line equipped with a 2-meter M12 connection featuring 4 poles This model includes a straight female socket and is designed without shielding or LED indicators The sheath is crafted from PUR material, ensuring it is halogen-free Additionally, the product boasts a cULus certification (E307231), affirming its safety and quality standards.

Features and Benefits:

    •Compliant with RoHS and REACH regulations.

    •No halogen content.

    •Resistance to welding sparks.

    •Suitable for cable carriers.

    •Weight of 110 grams.

Specifications:

 Number of poles 4
 Cable length 2 m
 Core cross-section 0.34 mm²
 Outside diameter 4.9 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Bending cycles 10 Mio
 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Connection thread M12
 Contact surface Gold-plated
 Housing main material PUR
