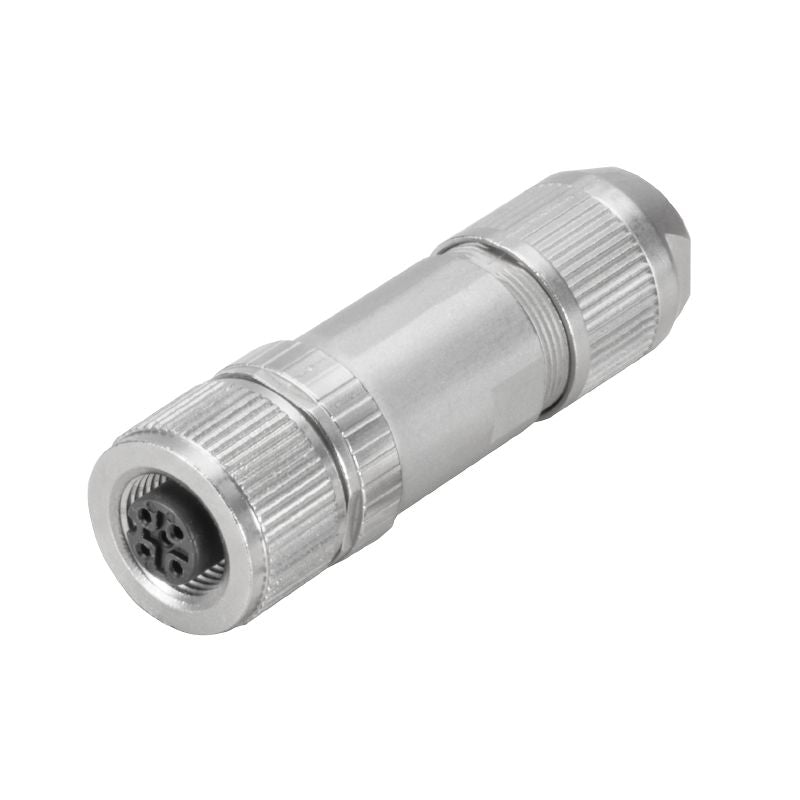

2681700000 - M12 Field Attachable Connector, IP67, 4A, D-Coded

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile field attachable connector tailored for M12 applications This connector adheres to RoHS standards without exemptions and boasts UL certification (cULus) under the certificate number E307231 It accommodates cables with a diameter ranging from 4 mm to 8 mm and complies with Category Cat5 standards in accordance with ISO/IEC 11801 The conductor cross-section supports dimensions from 0.

14 mm² to 075 mm², featuring a D-coded design for added compatibility With a nominal current capacity of 4 A and a voltage limit of 60 V, this connector ensures reliable connectivity Its IP67 protection rating makes it ideal for challenging environments, while it operates effectively within a temperature range of -40 to +85 °C.

Features and Benefits:

•Female contact gender.

•4-pole connection.

•PUSH IN type of connection.

•Designed to withstand pollution severity level 3.

•Shock and vibration proof as per EN 50155:2001.

Specifications:
