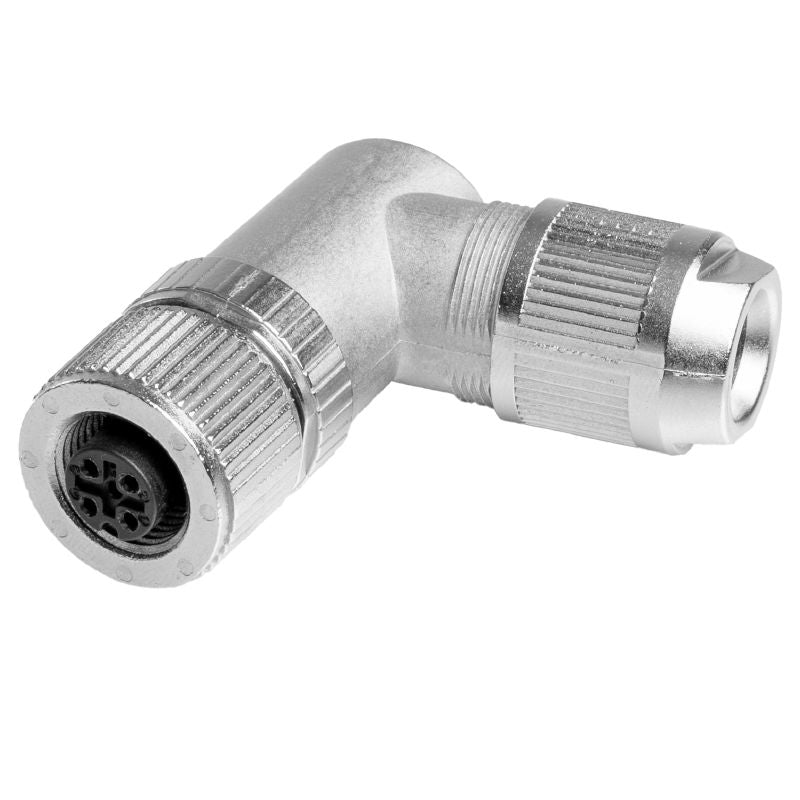

2681630000 - M12 IP67 Field Attachable Connector for Tough Conditions

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 field attachable connector, model SAIBWP-M-5A-4/8-M12, engineered for reliability and performance This connector meets RoHS standards without needing any exemptions and holds certification under UL File Number E307231 Weighing in at around 4048 grams, it is built to function effectively within a temperature range of -40 to +85 degrees Celsius With an impressive IP67 rating, this connector is well-suited for demanding environments.

It accommodates cables with diameters between 4 mm and 8 mm and features a female contact Operating at a nominal voltage of 60 V and handling up to 4 A of current, it ensures robust connectivity The connector comes with a threaded connection crafted from diecast zinc and utilizes a PUSH IN connection type for easy setup and durability.

Features and Benefits:

•Meets standards for fire safety in railway vehicles.

•Shock and vibration proof according to EN 50155:2001.

•Compliant without exemption with RoHS status.

•Insulation resistance of at least 100 MΩ.

•Pollution severity rated at 3.

Specifications:
