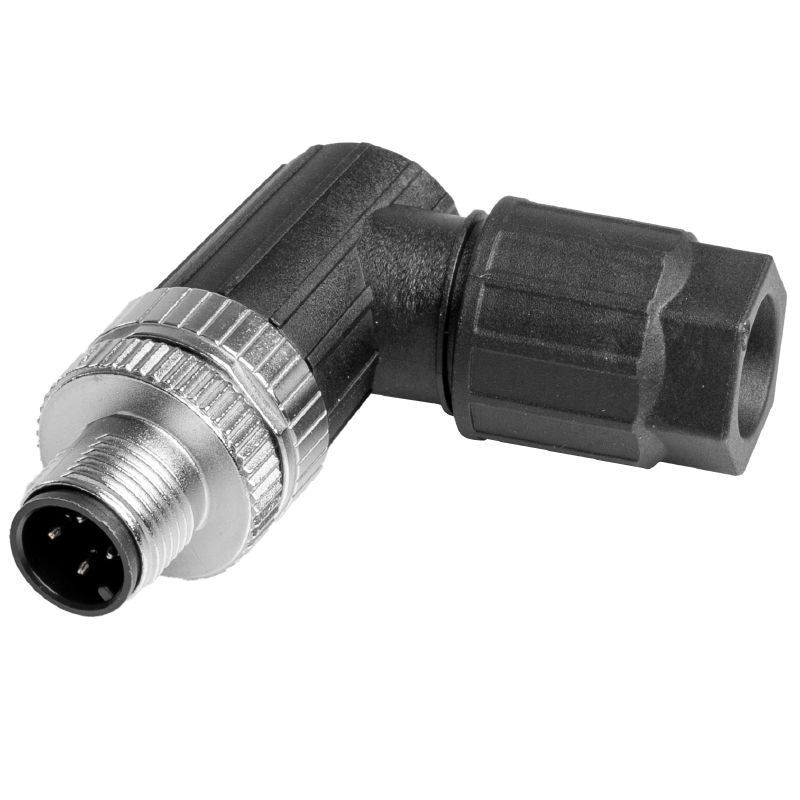

2681570000 - M12 Field Attachable Connector, RoHS Compliant, IP67 Rated

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAISWP-5A-4/8-M12, a versatile and customizable field-attachable connector tailored for M12 applications This connector meets RoHS standards and comes with UL certification, ensuring safety and compliance It accommodates a cable diameter range between 4 mm and 8 mm, offering flexibility for various setups With a conductor cross-section ranging from 014 mm² to 075 mm², it features a male gender connection and boasts a durable nickel/gold plated contact surface housed within PA 66 material.

Designed to function reliably in extreme conditions, it operates between -40°C to 85°C Capable of handling a nominal current of 4 A and a nominal voltage of 60 V, this connector is ideal for a range of applications The PUSH IN connection type guarantees a secure link, while the IP67 protection rating ensures it's dust-tight and water-resistant, making it a resilient choice for demanding environments.

Features and Benefits:

•Compliant without exemption for RoHS.

•IP67 protection degree.

•Shock and vibration proof according to EN 50155:2001.

•Flexible cable diameter range from 4 mm to 8 mm.

Specifications:
