2681520000 - M12 Field Attachable Connector, IP67, 4-Pole, 4A, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

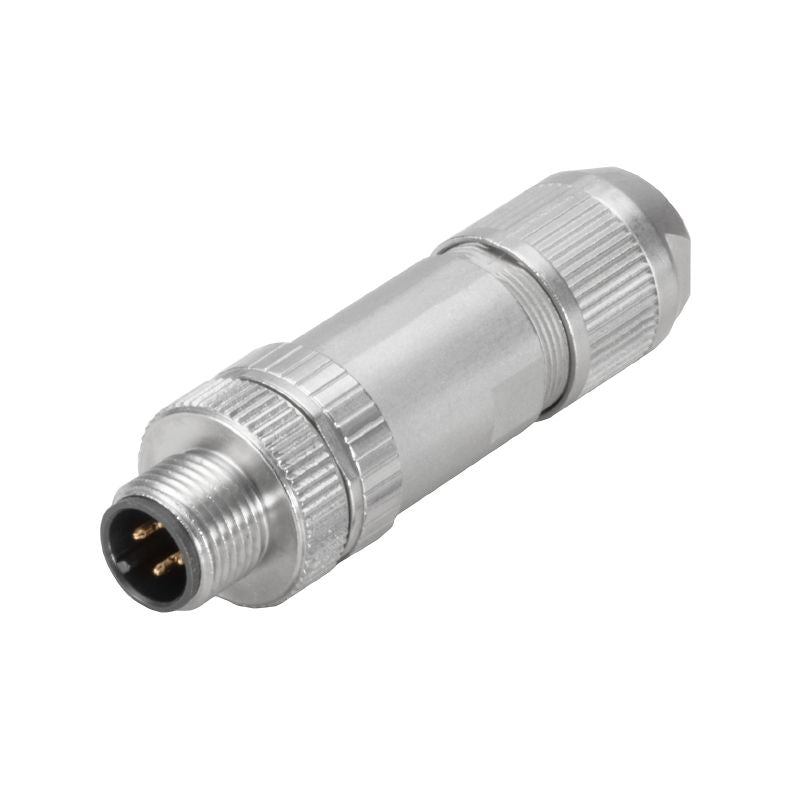

Introducing the M12 type field attachable connector, engineered for reliability and compliance This connector meets RoHS standards without any exemptions and proudly carries UL Certification number E307231 Sold individually, it accommodates cable diameters from 4 mm to 8 mm, featuring A-coded conductors With a maximum conductor cross-section of 075 mm² and a minimum of 014 mm², it ensures excellent connectivity.

The contact surfaces are crafted from a durable combination of nickel and gold, and it includes a male gender contact for versatile applications Constructed from PA 66 for the housing, this connector boasts an impressive insulation resistance of at least 100 MΩ It supports a nominal current of 4 A and operates under a nominal voltage of 60 V The design includes 4 poles and is rated with a pollution severity of 3, providing robust performance in challenging environments.

Enjoy peace of mind with its IP67 protection degree, offering resistance against both dust and water The housing is designed to function effectively within a temperature range of -40 to +85 degrees Celsius For easy installation, it features a PUSH IN type connection and a diecast zinc threaded ring, combining strength with simplicity.

Features and Benefits:

•RoHS compliant.

•UL Certified.

•IP67 rated for protection against dust and water.

•Shock and vibration proof according to EN 50155:2001.

Specifications:
