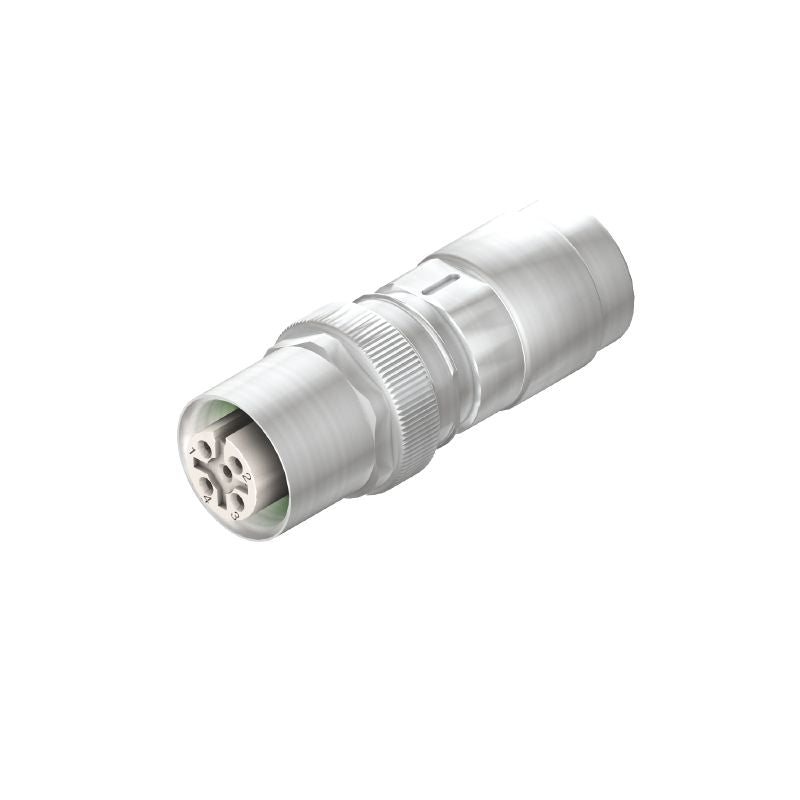

2664800000 - M12 Field-Attachable Connector, IP67, Gold-Plated Contacts

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 connector, expertly engineered for field attachment and compliant with RoHS standards This robust unit features a gold-plated contact area for superior conductivity, accommodating cable diameters ranging from 4 mm to 9 mm, and utilizes an A-coded design With a nominal current rating of 4 A and a voltage of 50 V, it is versatile enough for various applications When properly connected, this connector boasts a protection rating of IP67, offering reliable resistance to dust and water intrusion.

Crafted from a durable nickel-plated copper alloy, it withstands temperature extremes from -40 °C to 85 °C The crimp connection mechanism allows for over 250 plugging cycles, ensuring longevity and dependability in your projects.

Features and Benefits:

•Gold-plated contact surface.

•Protection degree of IP67 when screwed in.

•Capable of withstanding temperatures from -40 to +85 °C.

•Field attachable design.

•Designed to allow for more than 250 plugging cycles.

Specifications:
