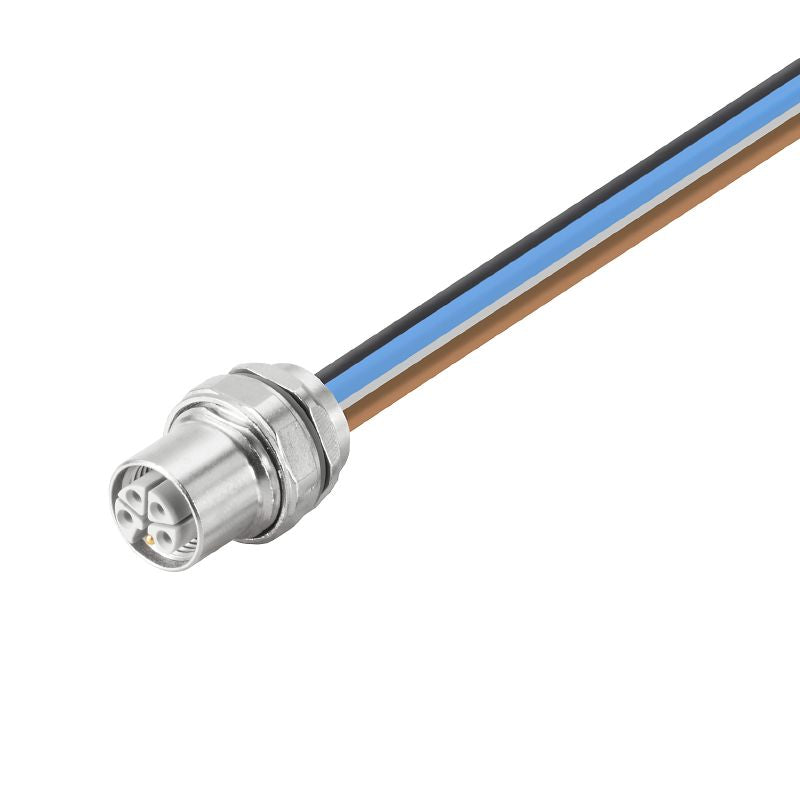

2625940000 - 0.3m M12 Female Socket, Straight 5 Poles, M16x1.5

2625940000 - 0.3m M12 Female Socket, Straight 5 Poles, M16x1.5

SKU: SKU: 2625940000 Download PDF

Variant:
  • 2625940000 - 0.3m M12 Female Socket, Straight 5 Poles, M16x1.5
Regular price Now $23.46
Regular price BEFORE   $0.00 Sale price Now $23.46
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile product equipped with built-in plugs tailored for an M12 female socket in a straight configuration This item is designed with an M 16 x 15 mounting thread and boasts a total of 5 poles for enhanced functionality Choose between a strand or cable length of 03 meters to fit your specific needs.

Features and Benefits:

    •RoHS compliant with exemptions.

    •Protection degree of IP67 when properly connected.

    •Temperature range of housing from -40 to +85 °C.

    •Gold-plated contact surface.

    •Zinc diecast housing material.

Specifications:

 Core cross-section 1.5 mm²
 Nominal current 16 A
 Nominal voltage 63 V
 Number of poles 5
 Strand / cable length 0.3 m
 Housing main material Zinc diecast
 Contact material Cu
 Contact surface Gold-plated
 Temperature range of housing -40 … +85 °C
 Mounting thread M 16 x 1.5
