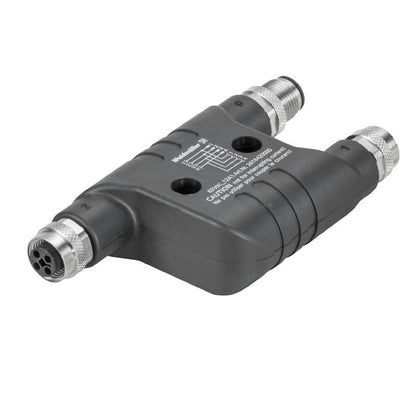

2616480000 - Reliable Y Connector with Two M12 Sockets and Gold-Plated Contacts

2616480000 - Reliable Y Connector with Two M12 Sockets and Gold-Plated Contacts

SKU: SKU: 2616480000   Download PDF

Select a Variant:
  • 2616480000 - Reliable Y Connector with Two M12 Sockets and Gold-Plated Contacts
Qty:
Regular price Now $51.65   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $51.65 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAI-H3-M12-K Y connector, a reliable solution that complies with various standards, including RoHS and cULus certifications This connector is equipped with two M12 sockets and one M12 pin, facilitating secure plug-in connections With a tightening torque specification of 08 to 12 Nm, it guarantees a dependable fit Made primarily from TPU, it is engineered for an operational temperature range between -30 to +90 °C, and supports a nominal current capacity of up to 12 A.

To further enhance its reliability, the contact surface is gold-plated for improved conductivity and longevity.

Features and Benefits:

    •Gold-plated contact surface.

    •TPU housing for durability.

    •Operates within a wide temperature range of -30 to +90 °C.

    •Nominal current capacity of 12 A.

    •Rated voltage of 630 V AC.

    •IP65, IP67, and IP68 protection degrees.

Specifications:

 Cable gland M 12
 Coding K-coded
 Number of poles 5
 Pollution severity 3
 Standards IEC 61076-2-111
 Shield connection No
 Temperature range of housing -30…+90 °C
