2616460000 - Durable IP68 Y Connector with 5 Poles & 12A Capacity

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

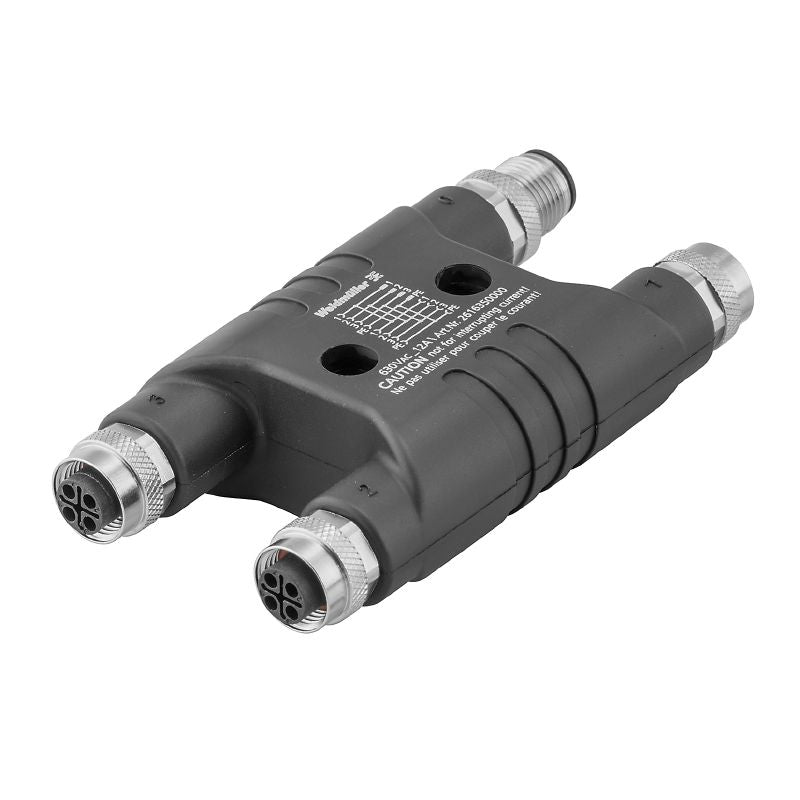

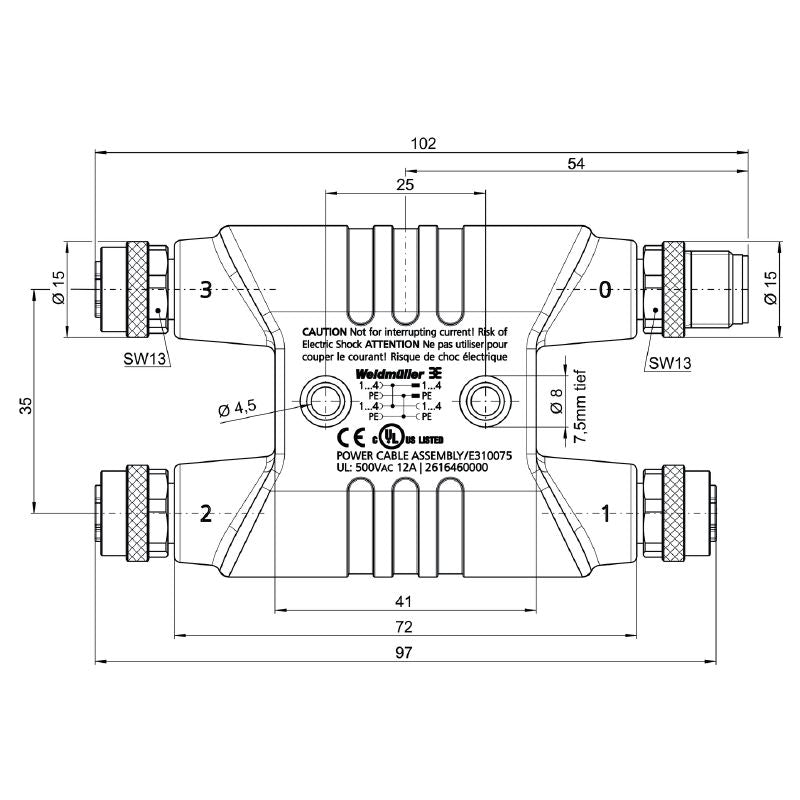

Introducing the Y connector, model number SAI-H4-M12-K, a reliable component compliant with RoHS regulations and certified by cULus (certificate number E310075) This connector showcases a design optimized for performance, featuring three M12 plug-in sockets and a pin outlet It boasts a tightening torque specification of 08 to 12 Nm and is made from durable thermoplastic polyurethane (TPU) paired with gold-plated contact surfaces for excellent connectivity.

With a nominal current rating of 12 A and five poles, this connector is engineered to withstand harsh environmental conditions, boasting protection ratings of IP65, IP67, and IP68 Designed to function effectively in temperatures ranging from -30 to +90 °C, this connector is an essential choice for demanding applications.

Features and Benefits:

•Compliant with RoHS and REACH SVHC regulations.

•Gold-plated contact surface for better conductivity.

•Robust housing material made of TPU.

•Capable of handling high nominal current up to 12 A.

•Severe pollution severity rating for reliability.

•High protection degree against dust and water ingress.

Specifications:
