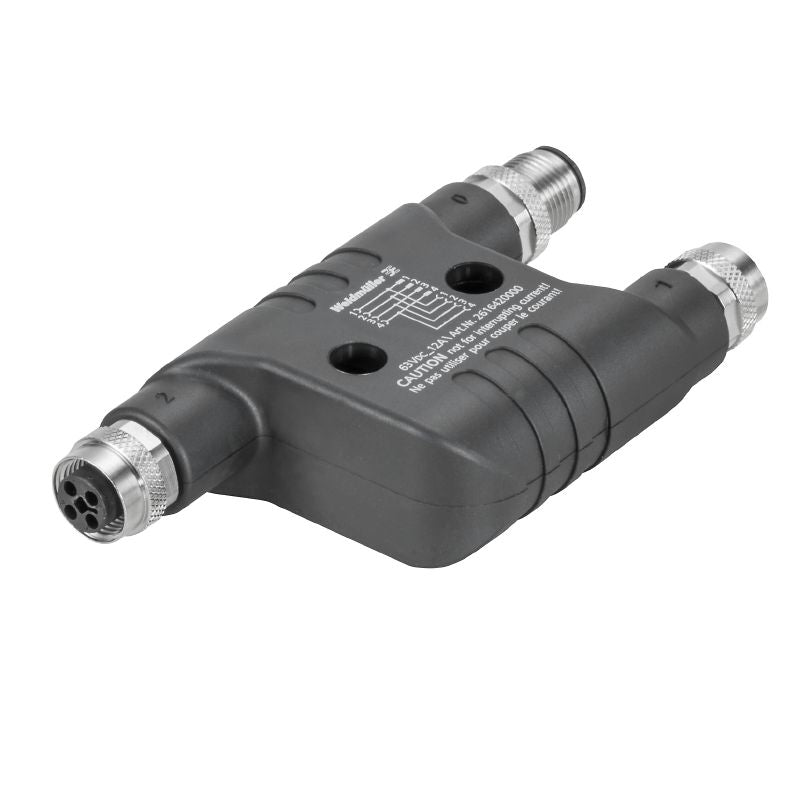

2616410000 - RoHS Compliant M12 Y Connector with TPU Housing

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-H3-M12-S Y connector, engineered for specialized tasks This connector is RoHS compliant and holds a cULus certification number E310075 Featuring M12 cable gland dimensions, it includes S-coded connections with M12 plug-in connectors at both outlets Constructed from TPU material, the housing can withstand temperatures ranging from -30 to +90 degrees Celsius With gold-plated contacts, this connector offers outstanding durability and connectivity, boasting an insulation resistance of ≥ 100 MΩ.

It supports a nominal current of 12 A, is designed for pollution level 3, and provides robust protection with an IP67 classification.

Features and Benefits:

•Compliant with RoHS exemption.

•Environmental Product Compliance Status is clear.

•Gold-plated contact surfaces for reliable connections.

•Temperature range suitable for harsh environments.

Specifications:
