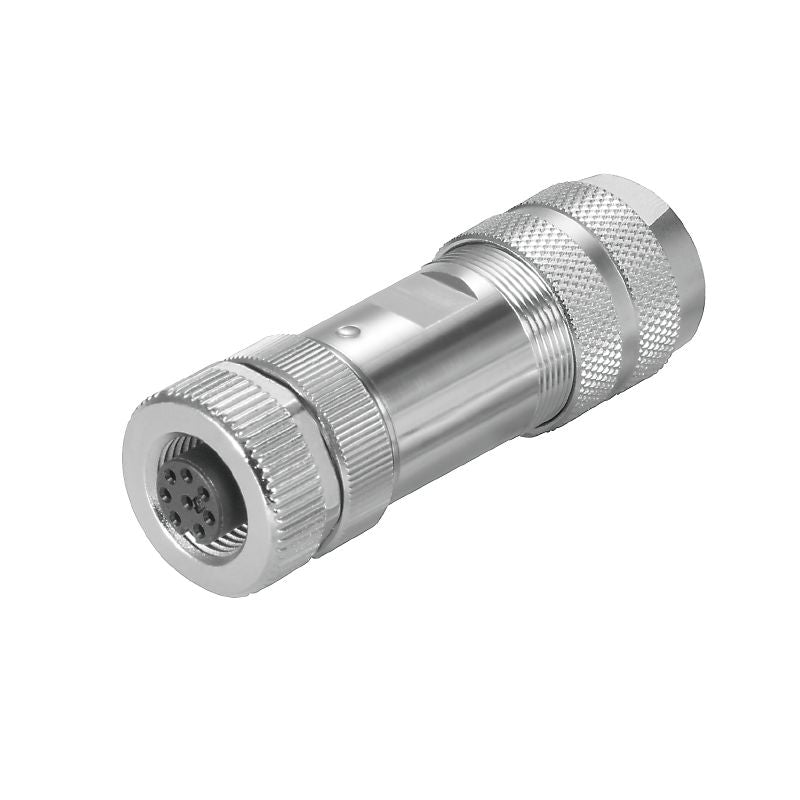

2590900000 - M12 Field Attachable Connector 6-8mm, 5-Pole A-Coded

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 field attachable connector, model SAIBWZ-M-5A-6/8-M12, a highly adaptable solution for multiple applications This connector accommodates cable diameters ranging from 6 mm to 8 mm and features A-coded female contacts with five poles for reliable connectivity It can handle conductor sizes between 014 mm² and 05 mm², ensuring excellent connection strength Crafted with a diecast zinc threaded ring, this connector is built for long-lasting performance.

Operating at a nominal current of 4 A and a voltage of 60 V, it is designed to meet a pollution severity rating of 3 Additionally, it includes a shield connection for increased protection With a temperature tolerance of -40 to +85 °C, this connector is suitable for a diverse array of environmental conditions.

Features and Benefits:

•Gold-plated contact surface for improved connectivity.

•Tension-clamp connection type enhances stability.

•Compatible with M12 connections.

Specifications:
