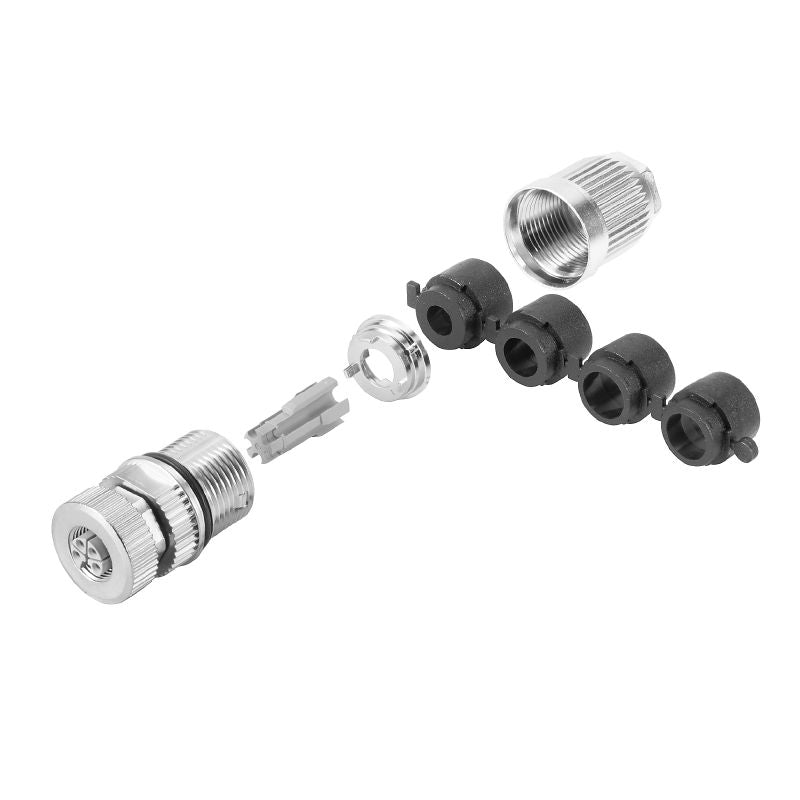

2525620000 - M12 L-coded Connector, IP67, 16A, Zinc Diecast Housing

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable M12 socket connector designed for field attachment Fully compliant with RoHS regulations, this connector carries a cURus certification under number E307231 Weighing in at just 39 grams, it facilitates easy plug-in connections and boasts a robust zinc diecast housing With an innovative L-coded design, it accommodates cable diameters ranging from 58 mm to 135 mm For optimal performance, the conductor cross-section varies between 0.

5 mm² and 25 mm², while the connection cross-section is limited to 075 mm² to 15 mm² This connector is rated for a nominal current of 16 A and a nominal voltage of 63 V, achieving an IP67 rating when securely fastened Engineered for durability, it allows for up to 500 plugging cycles and can operate within a temperature range of -40 to +85 °C Additionally, it features a shield connection that enhances its functionality, making it suitable for diverse applications.

Features and Benefits:

•RoHS compliant without exemption.

•Certified with cURus (Certificate No. E307231).

•IP67 protection degree when screwed in.

•Temperature range of housing from -40 to +85 °C.

•Maximum cable diameter of 13.5 mm, minimum of 5.8 mm.

•Can withstand up to 500 plugging cycles.

Specifications:
