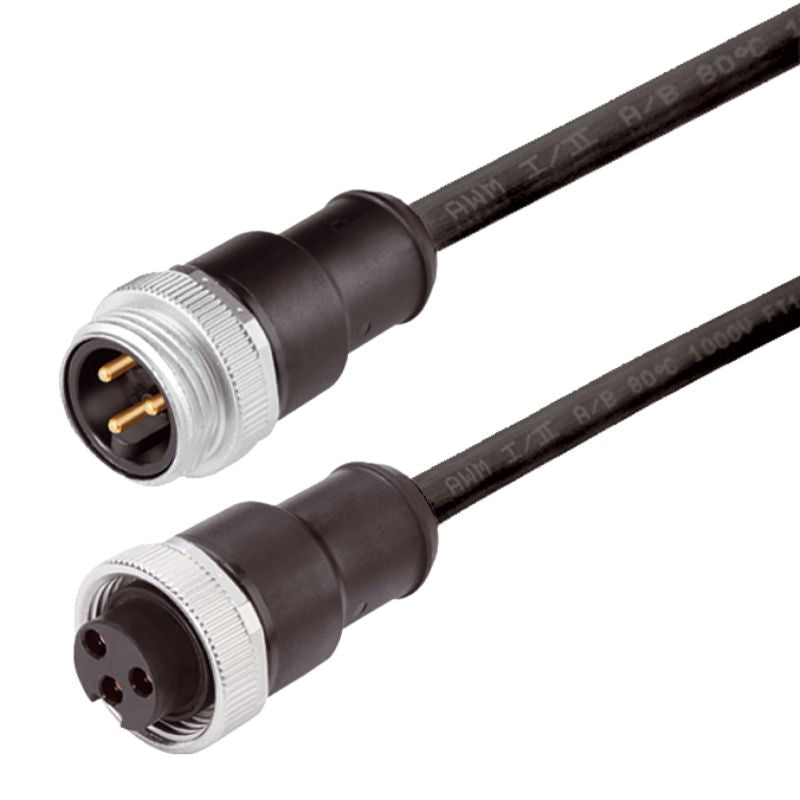

2519450200 - 7/8" 5-Pole PUR Connector for Sensor/Actuator Applications

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

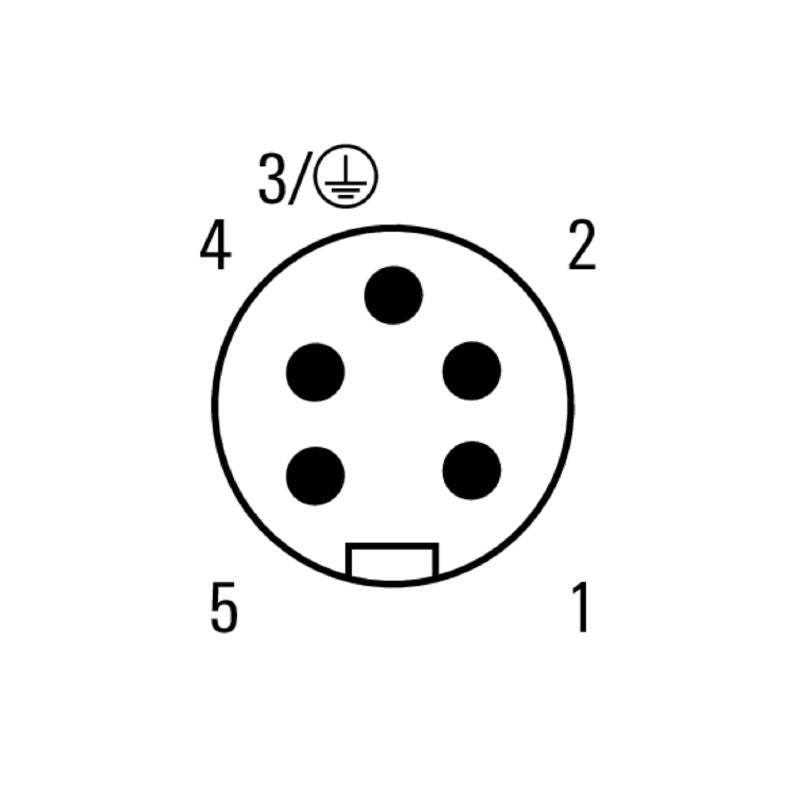

Introducing the SAIL-7/8G7/8G-5-20U, a reliable 7/8 inch connector engineered with 5 poles (4 + PE) specifically for sensor and actuator integration This connector features a straight socket and pin arrangement, ensuring straightforward connectivity It's designed without shielding or an LED indicator, maintaining a streamlined form Constructed from halogen-free PUR material, this connector complies with ROHS standards for safety and environmental considerations.

Each order includes one unit, making it easy to enhance your connectivity needs.

Features and Benefits:

•Length of 2 m.

•Sheath material is PUR.

•Halogen-free.

•Suitable for cable carriers.

•Nominal current rating of 9 A.

•Nominal voltage rating of 300 V.

•Operating temperature range from -20 to 80 °C when in motion and -50 to 80 °C when stationary.

•Protection degree IP68 when screwed in.

•Compliant with RoHS and REACH regulations.

Specifications:
