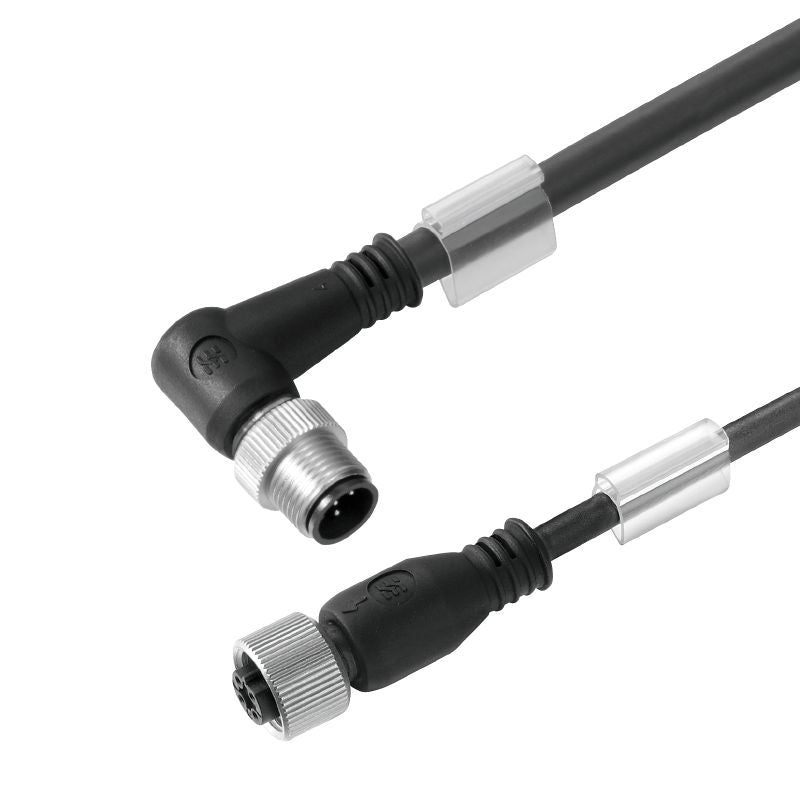

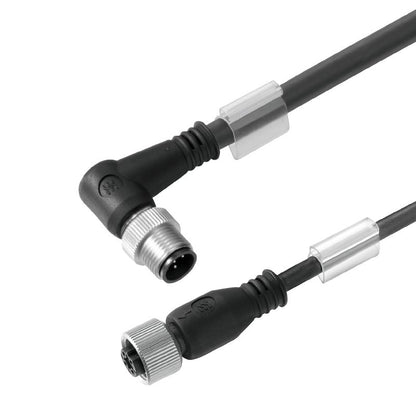

2503570500 - 5m M12 PVC Sensor/Actuator Connection Line

2503570500 - 5m M12 PVC Sensor/Actuator Connection Line

SKU: SKU: 2503570500 Download PDF

Variant:
  • 2503570500 - 5m M12 PVC Sensor/Actuator Connection Line
Regular price Now $18.20
Regular price BEFORE   $0.00 Sale price Now $18.20
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIL-M12WM12G-5-50V connecting line, an ideal solution for sensor and actuator applications This 5-meter cable is equipped with M12 connectors featuring a 5-pin configuration Crafted with a halogen-free PVC sheath, this line offers reliable performance without shielding or integrated LED indicators.

Features and Benefits:

    •PVC sheath material.

    •Number of poles: 5.

    •Available length: 5 m.

    •Colour coding available in brown, white, blue, black, and grey.

    •Easily configurable cable length.

Specifications:

 Cable length 5 m
 Core cross-section 0.34 mm²
 Outer diameter 5.7 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP67, IP68 when fully mounted, IP65, IP66
 Shock and vibration proof Section B
 Insulation resistance 10^8 Ω
 Housing main material PUR
 Plugging cycles ≥ 100
