2503560450 - 4.5m M8/M8 PVC Sensor/Actuator Connecting Line

2503560450 - 4.5m M8/M8 PVC Sensor/Actuator Connecting Line

SKU: SKU: 2503560450   Download PDF

Select a Variant:
  • 2503560450 - 4.5m M8/M8 PVC Sensor/Actuator Connecting Line
Qty:
Regular price Now $12.85   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $12.85 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

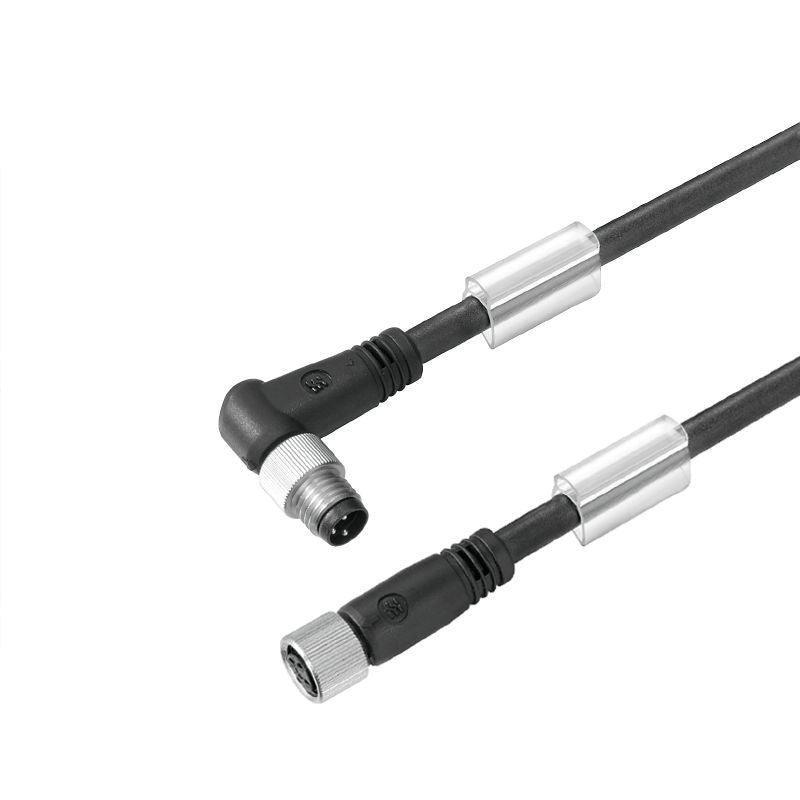

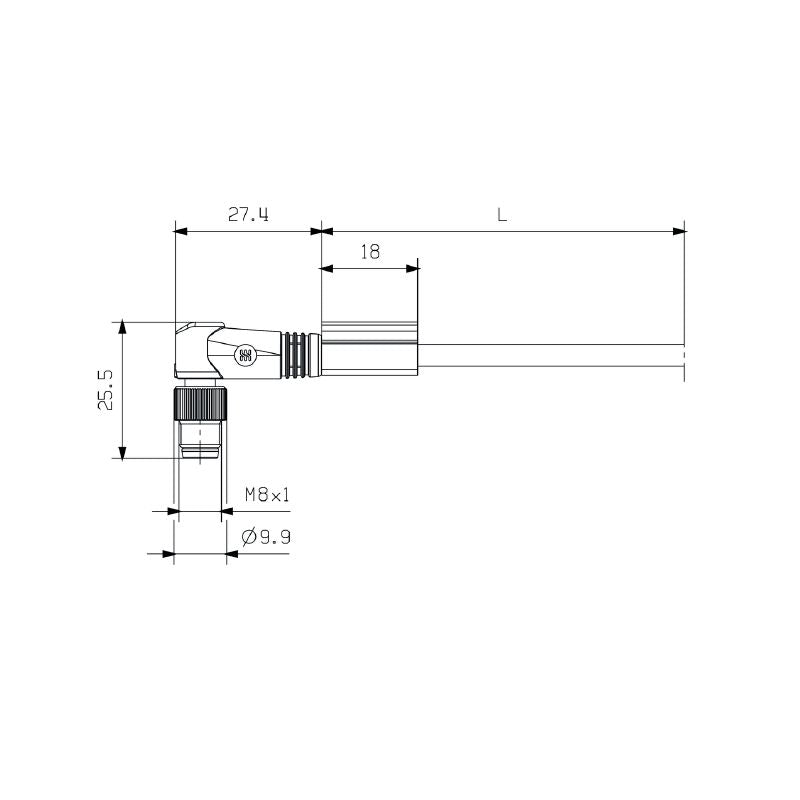

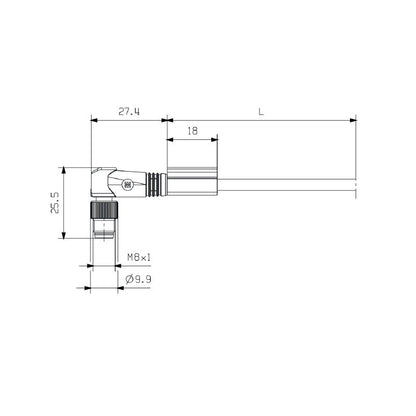

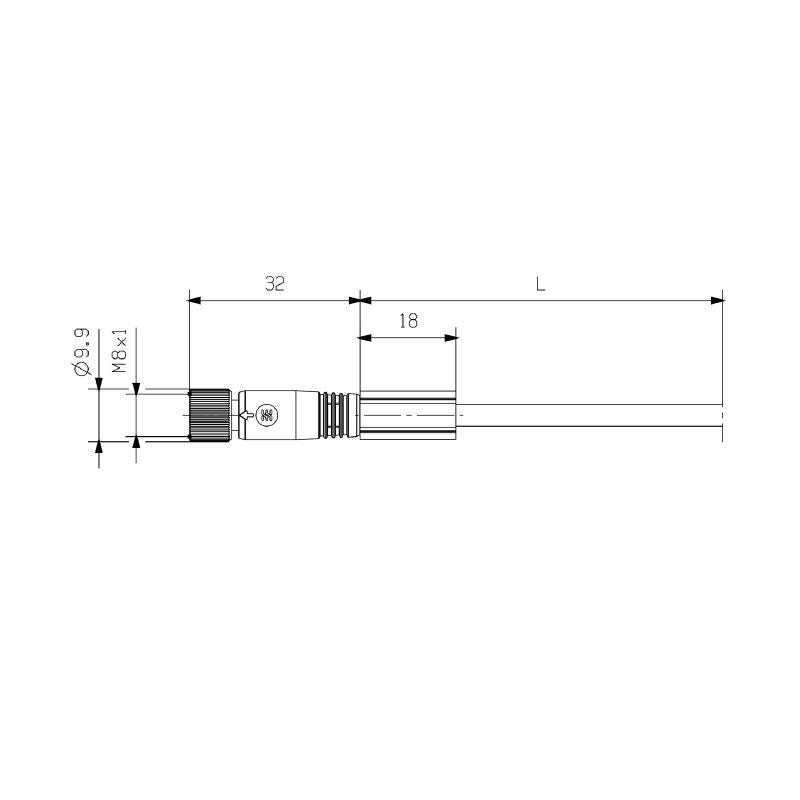

Introducing a specialized sensor/actuator connecting line, crafted in an efficient M8/M8 configuration This 45-meter long cable includes three poles and features a pin angled connection on one end with a bush straight connection on the opposite end The cable is constructed from halogen-free PVC material and is unshielded, providing a straightforward solution for your connectivity needs Please note, this line does not include an LED.

Ideal for various applications requiring reliable connections.

Features and Benefits:

    •RoHS compliant with exemption.

    •Plugging cycles of ≥ 100.

    •Rated for a nominal current of 4 A.

    •Rated for a nominal voltage of 60 V.

    •Rated protection degree of IP65 and IP66.

    •Temperature operational range for moving up to -5...80 °C and stationary from -30...80 °C.

    •Gold-plated contact surface.

Specifications:

 Cable length 4.5 m

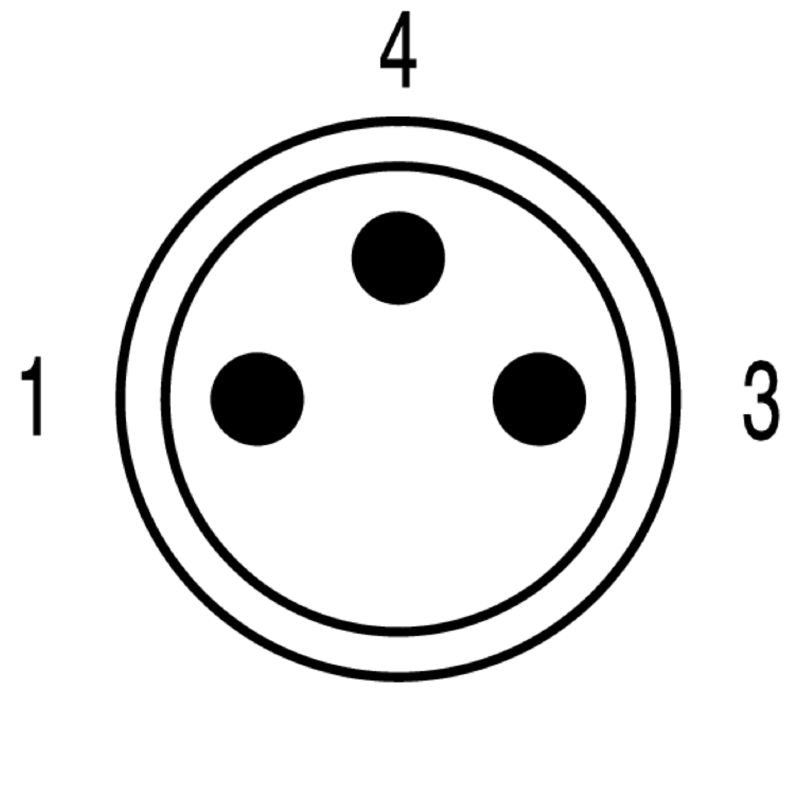

 Number of poles 3
 Core cross-section 0.25 mm²
 Outer diameter 4.5 mm ± 0.2 mm
 Sheath material PVC
 Sheathing colour black
 Nominal current 4 A
 Nominal voltage 60 V
 Insulation resistance 10^8 Ω
 Temperature range of housing -25…+85 °C
 Connection thread M8 / M8
 Coding A-coded
