2485310000 - IP67 Rated M12 Connector with Gold Plated Contacts

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

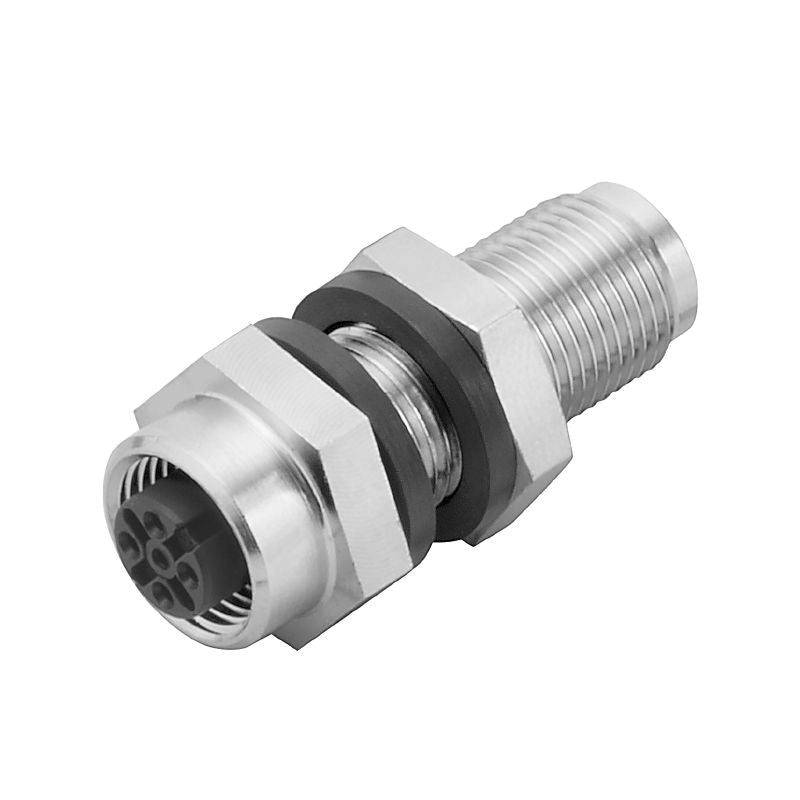

Introducing the SAI-WDF 5P B M12 K connector, a versatile solution suitable for multiple applications, compliant with RoHS directives This connector boasts a gold-plated contact surface and is made from durable CuZn material, providing excellent conductivity It supports a nominal current of 4 A and a nominal voltage of 60 V With an IP67 protection rating, it is well-equipped to withstand challenging environmental conditions.

Designed to operate efficiently in extreme temperatures ranging from -40 to +85 °C, this connector ensures reliable performance across a range of situations.

Features and Benefits:

•Gold-plated contact surface.

•Robust IP67 protection.

•Wide temperature range for housing.

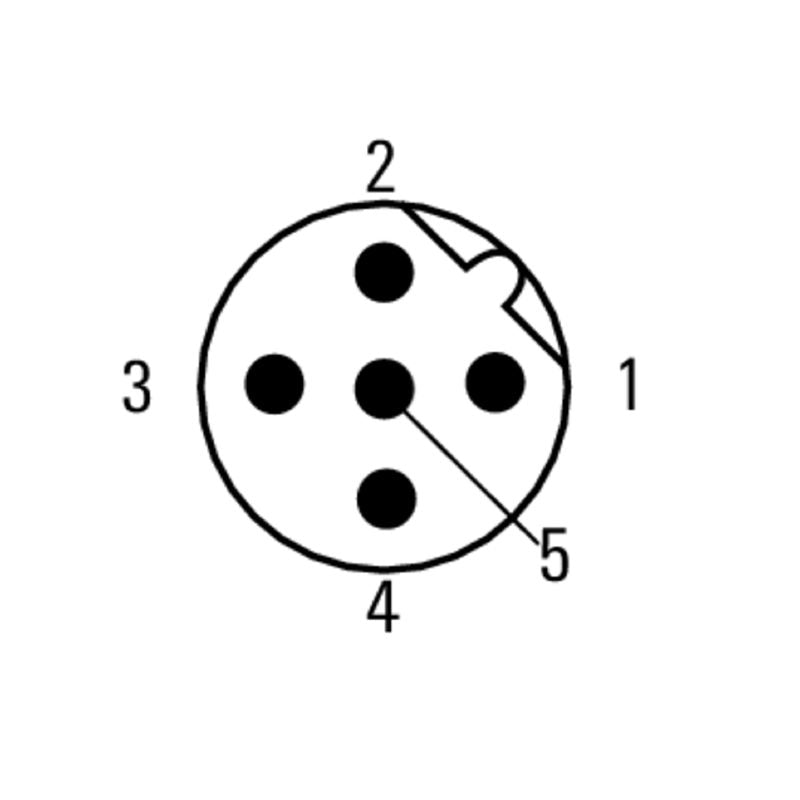

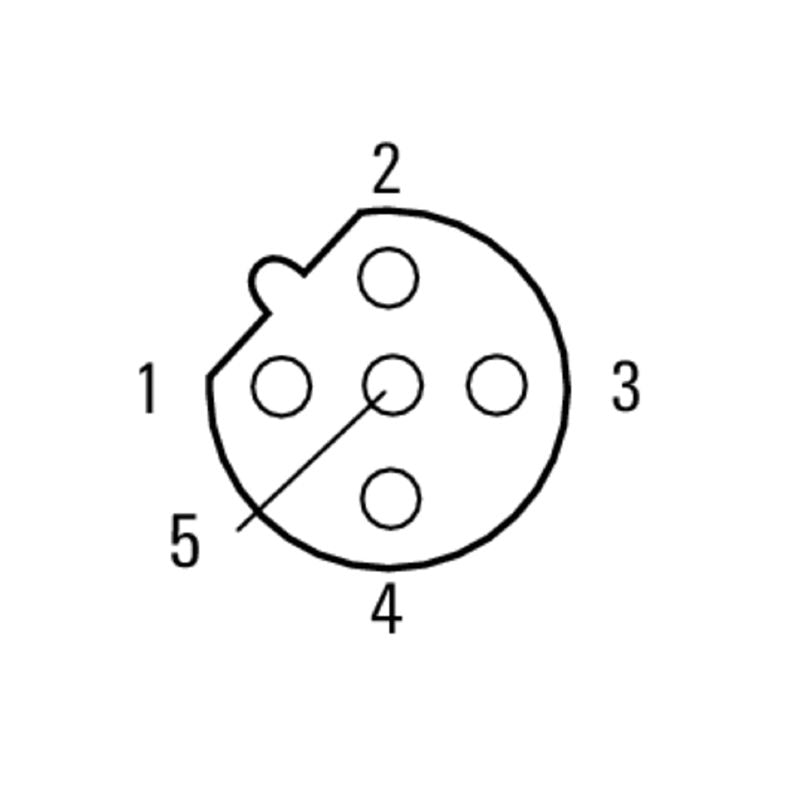

•5 poles for versatile connections.

Specifications:
