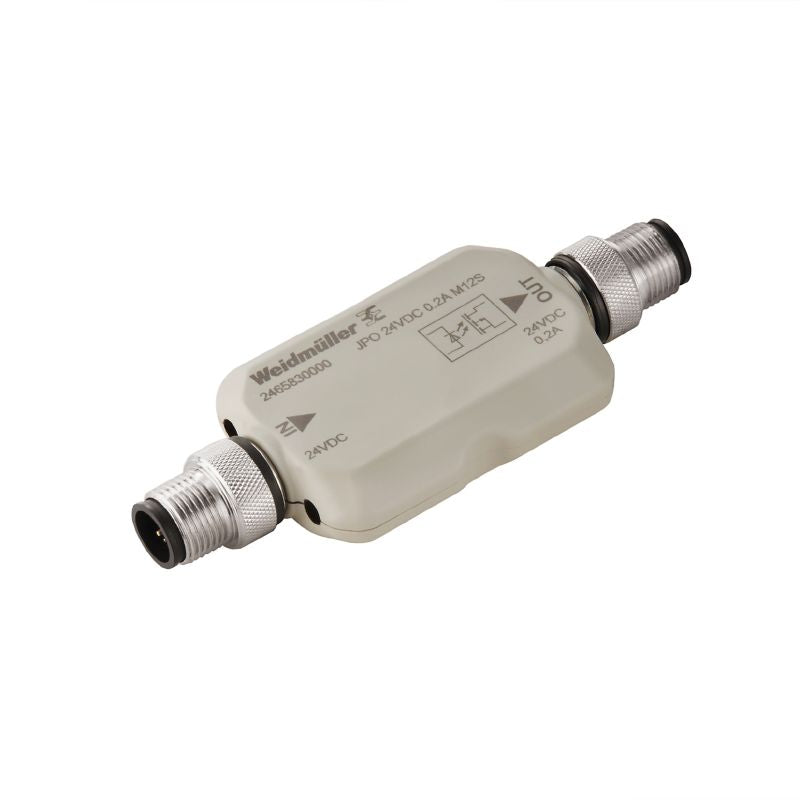

2465830000 - IP67 M12 24VDC Plug for Robust Applications

2465830000 - IP67 M12 24VDC Plug for Robust Applications

SKU: SKU: 2465830000   Download PDF

Select a Variant:
  • 2465830000 - IP67 M12 24VDC Plug for Robust Applications
Qty:
Regular price Now $105.15   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $105.15 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the JPO 24VDC 02A M12S, an ideal solution for applications that require a control voltage between 18V and 30V DC This device features an M12 plug with A coding, allowing for voltage switching anywhere from 3V to 33V DC Engineered to perform in a temperature range of -20°C to 60°C, it meets RoHS compliance standards for safety and environmental responsibility With a nominal control current of 0.

01 A DC, it effectively manages a rated switching current of up to 200 mA, with a low maximum voltage drop of 1 V or less This product also boasts an IP67 protection rating, ensuring its reliability even in challenging conditions.

Features and Benefits:

    •Compliant with RoHS regulations.

    •IP67 protection degree ensuring robustness against dust and water.

    •Compact design with M12 plug connection.

    •Nominal control current of 0.01 A DC.

Specifications:

 Height 14.4 mm
 Width 36 mm
 Length 83 mm
 Rated control voltage 18...24...30 V DC
 Rated switching voltage 3...33 V DC
 Rated switching current 200 mA
 Voltage drop at max. load ≤ 1 V
 Rated voltage 32 V
 Surge voltage category I
 Pollution severity 2
 Number of poles 4
 Shielded No
 Storage temperature -20 °C...60 °C
 Operating temperature -20 °C...60 °C
