2455991000 - 10m Shielded M12 Connecting Line, 5 Poles, Halogen-Free
2455991000 - 10m Shielded M12 Connecting Line, 5 Poles, Halogen-Free
SKU: SKU: 2455991000 Download PDF
- 2455991000 - 10m Shielded M12 Connecting Line, 5 Poles, Halogen-Free
- 2455991000 - 10m Shielded M12 Connecting Line, 5 Poles, Halogen-Free
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

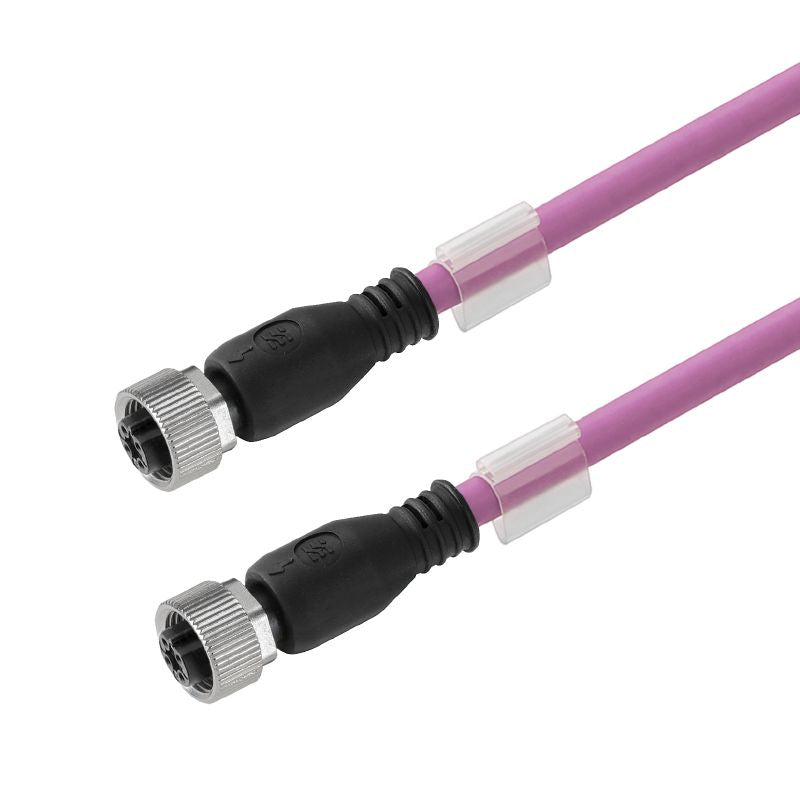

Introducing a versatile 10-meter connecting line designed for seamless connectivity, featuring a straight female socket at each end This robust cable is equipped with five poles and comes with a shielded design to guarantee dependable performance Crafted from PUR material that is free from halogen compounds, it boasts a gold-plated contact surface for optimal conductivity With a capability of 4A and a nominal voltage rating of 125V, this cable is RoHS compliant, making it an excellent choice for applications that demand a reliable connection.
Features and Benefits:
•Designed with a straight female socket on both ends.
•Constructed from PUR sheath material for durability.
•Gold-plated contact surface enhances conductivity.
•Suitable for use in environments requiring IP67 protection.
•No halogen for safer usage.
Specifications:
| Acceleration | 5 m/s² |
| Bending cycles | 3 Mio |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 10 m |

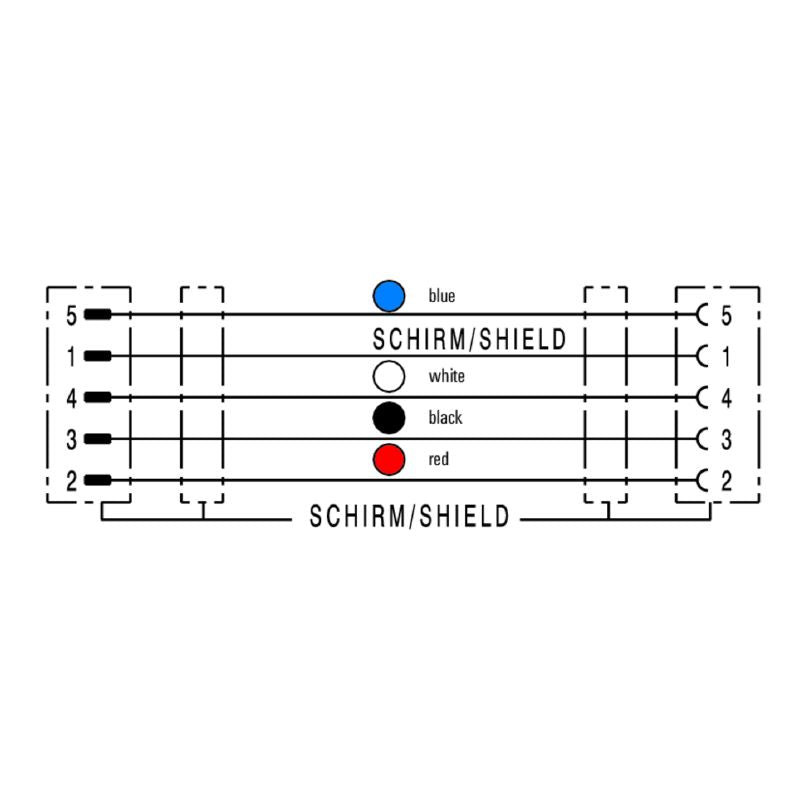

| Colour coding | white, blue, red, black |
| Configurable cable length | No |
| Halogen | No |
| Hybrid cable | No |
| Insulation | TPE |
| Irradiation crosslinked | No |
| Number of poles | 5 |
| Outer cladding in accordance with UL AWM style | 20236 (80 °C / 30 V) |

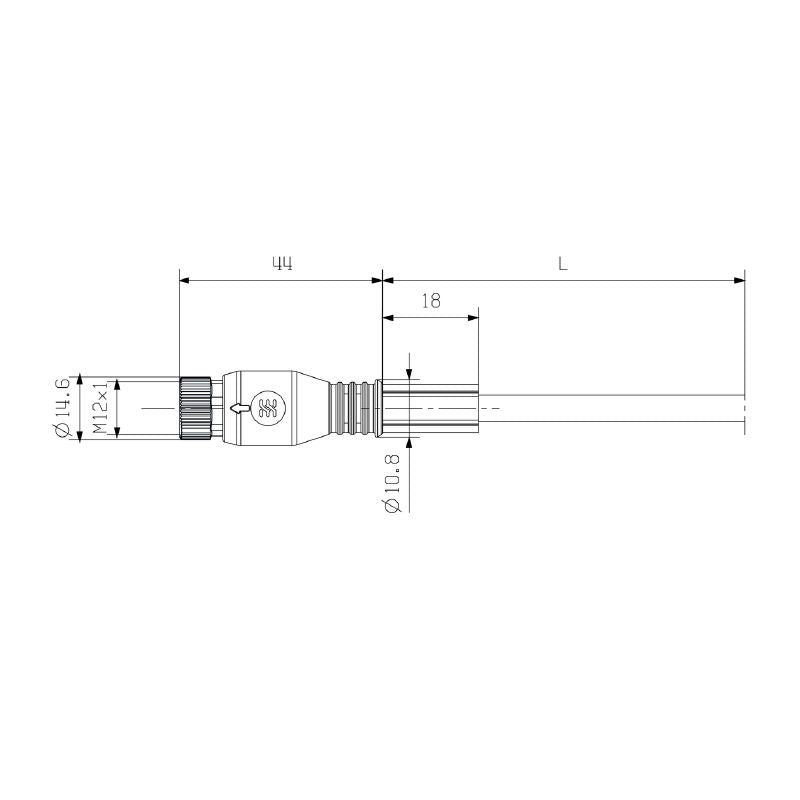

| Outside diameter | 7 mm ± 0.3 mm |
| Resistant to welding beads | No |
| Sheath material | PUR |
| Sheathing colour | violet |
| Shielded | Yes |
| Speed | 180 m/s |
| Suitable for cable carriers | Yes |
| Temperature range, moving | -10...80 °C |
| Temperature range, stationary | -40...80 °C |
| Welding spark resistance | No |
| Wire cross section (Print/Online) | 2 x 0.34 mm² + 2 x 0.22 mm² |

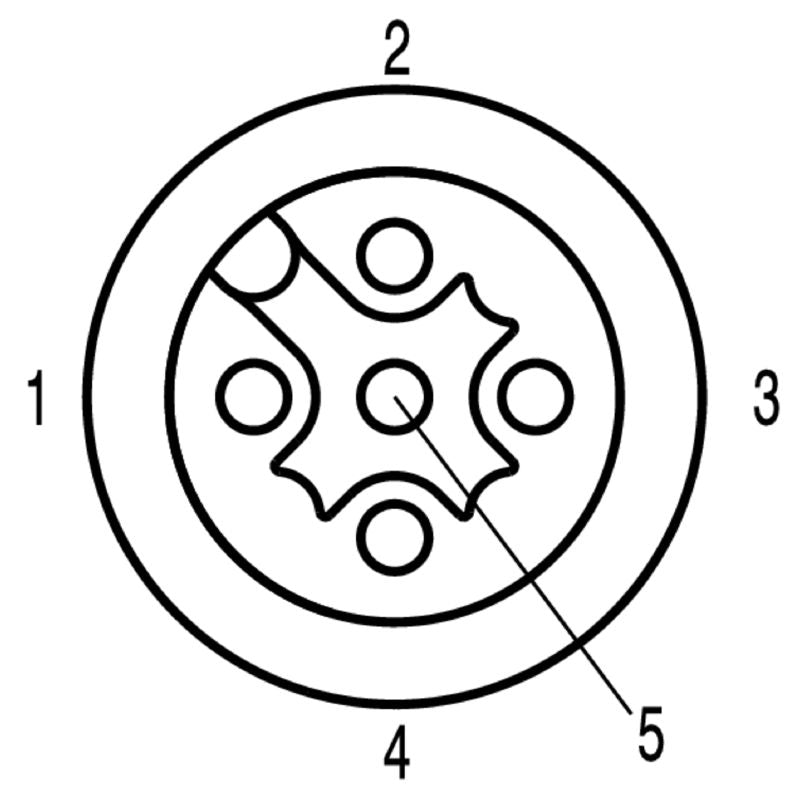

| Coding | A-coded |
| Connection thread | M12 / M12 |
| Insulation resistance | 10^8 Ω |
| jumpered | No |
| LED | No |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Temperature range of housing | -25…+80 °C |
| Threaded ring material | Brass, nickel-plated |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Version | Female socket, straight - Female socket, straight |
| Electrical properties | {'Insulation resistance': '10^8 Ω', 'Nominal voltage': '125 V', 'Plug, left': 'M12, A-coded, IP67, female contact, straight, Plastic, shielded', 'Plug, right': 'M12, A-coded, IP67, female contact, straight, Plastic, shielded'} |
| Classifications | {'ETIM 6.0': 'EC001855', 'ETIM 7.0': 'EC001855', 'ETIM 8.0': 'EC001855', 'ETIM 9.0': 'EC001855', 'ETIM 10.0': 'EC001855', 'ECLASS 9.0': '27-06-03-11', 'ECLASS 9.1': '27-06-03-11', 'ECLASS 10.0': '27-06-03-11', 'ECLASS 11.0': '27-06-03-11', 'ECLASS 12.0': '27-06-03-11', 'ECLASS 13.0': '27-06-03-11', 'ECLASS 14.0': '27-06-03-11', 'ECLASS 15.0': '27-06-03-11'} |
