2455320150 - 1.5m M12 5-Pole PUR Connecting Line for Sensors/Actuators

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

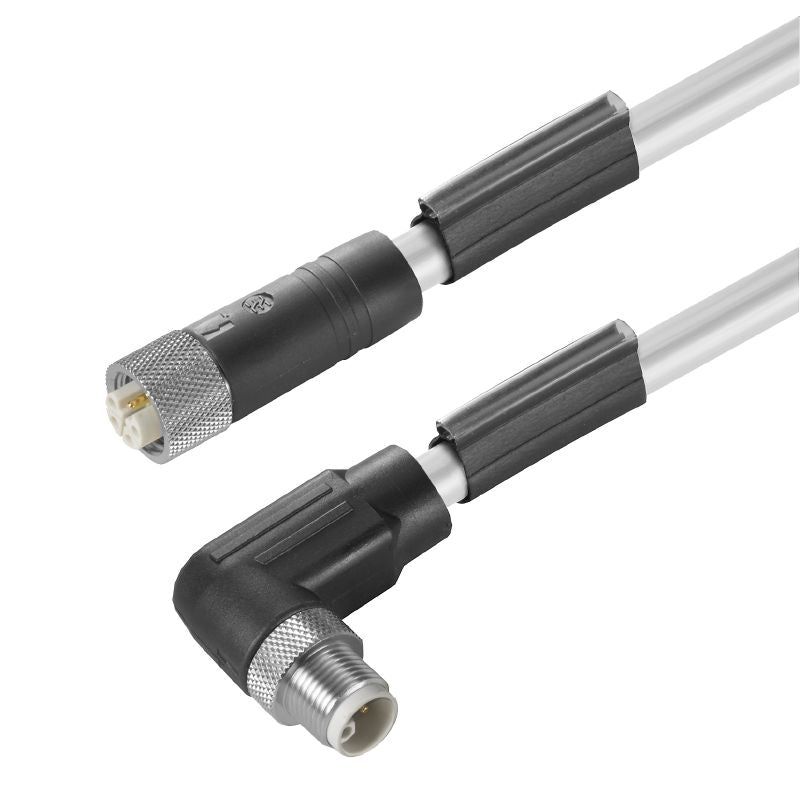

Introducing the SAIL-M12WM12G-L-15PGR connecting line, tailored for sensor and actuator functionalities This 15-meter cable is equipped with a 5-pole M12 connector and is designed without shielding or an integrated LED Constructed from halogen-free PUR material, it offers versatility for various applications Perfect for reliable connections in diverse environments.

Features and Benefits:

•Compliant with RoHS standards.

•Suitable for cable carriers.

•Gold-plated contact surface.

•Low insulation resistance of 10^8 Ω.

•Can withstand a temperature range of -30 to 80 °C when in motion and -40 to 80 °C when stationary.

•IP67 protection when securely connected.

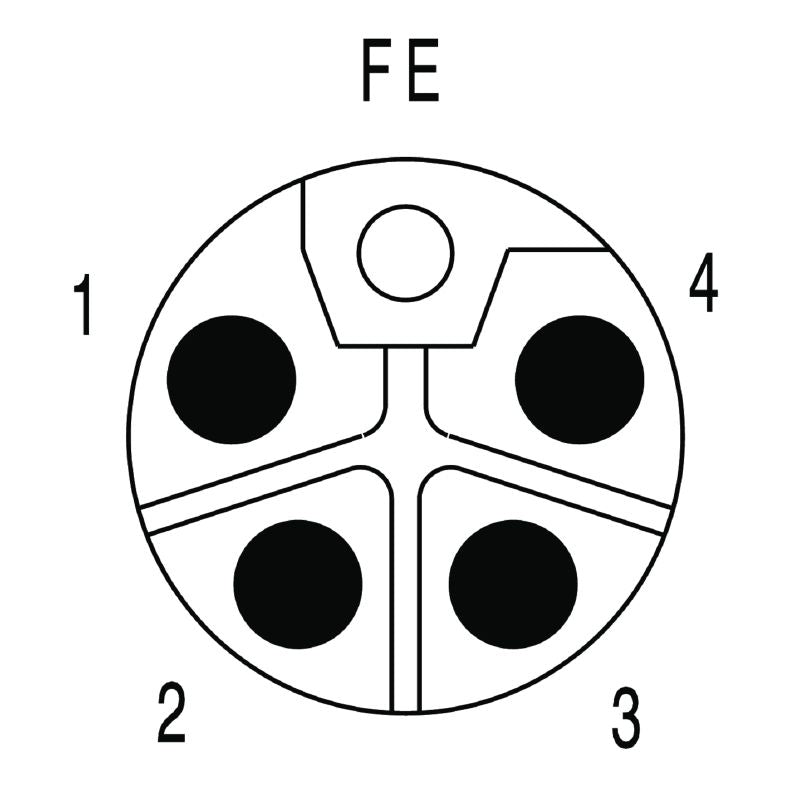

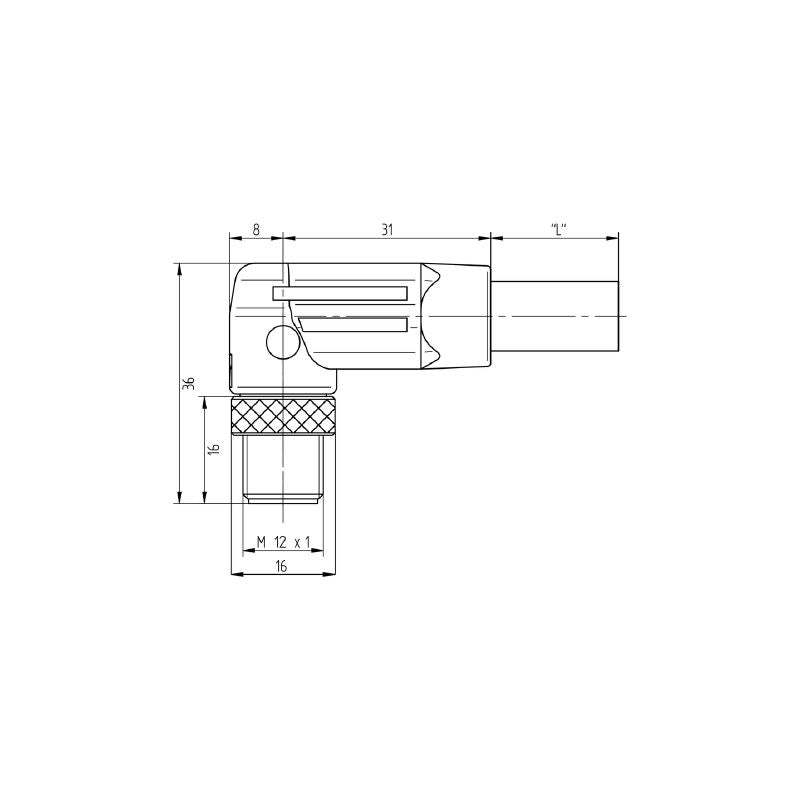

•Plug left: M12, L-coded, IP67, male contact, angled 90°, plastic and unshielded.

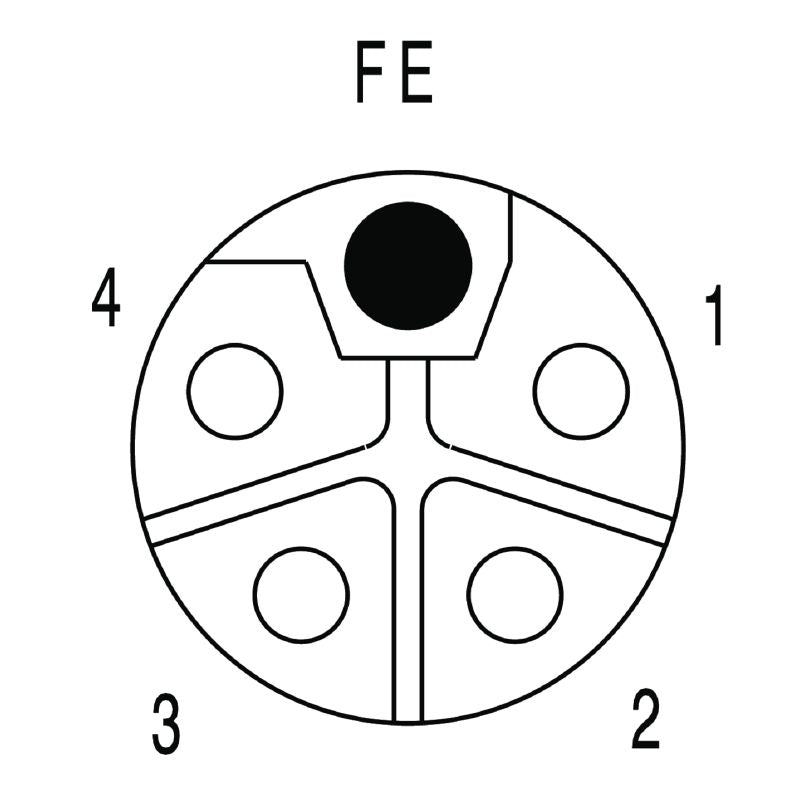

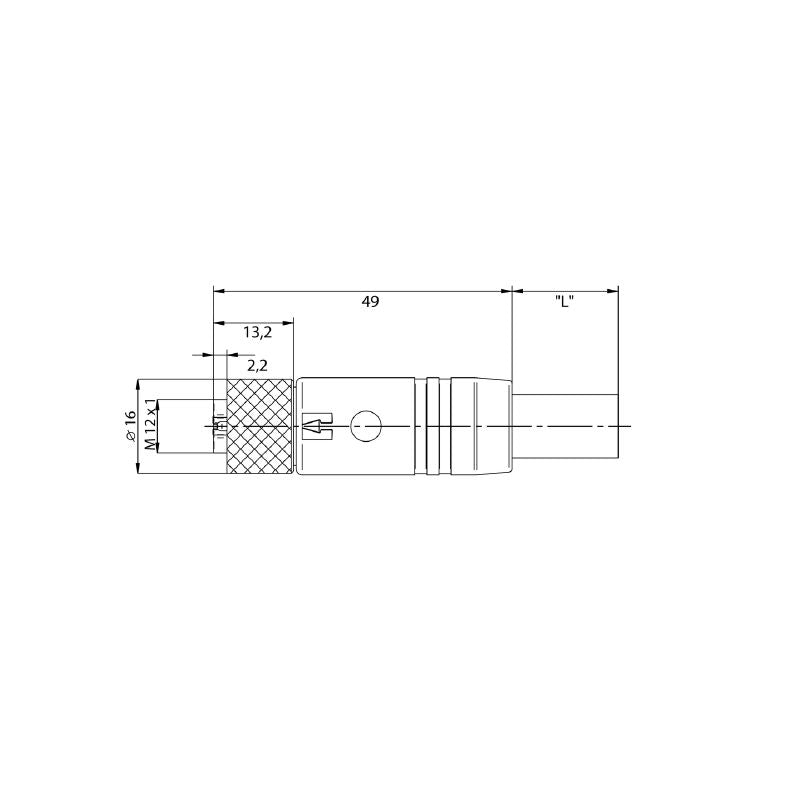

•Plug right: M12, L-coded, IP67, female contact, straight, plastic and unshielded.

•Designed with a bending radius compatible with both moving and stationary applications.

Specifications:
