2439350000 - M12 T-Coded IP67 Y Connector with Gold-Plated Contacts

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

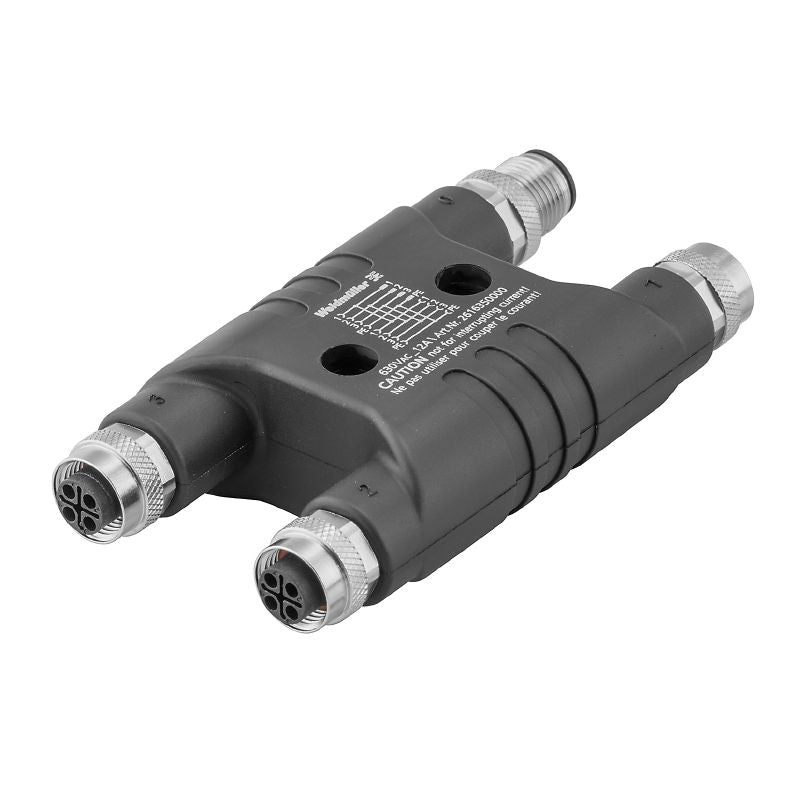

Introducing the SAI-H4-M12-T, a robust M12 T-coded Y connector engineered for reliability and compliance with RoHS standards This connector boasts a gold-plated contact surface to ensure optimal connectivity and features an impressive IP67 protection rating for durability in challenging environments Crafted from TPU, it offers exceptional resilience, operating within a temperature range of -30 to +90 °C.

Supporting a nominal current of 12 A and functioning at a rated voltage of 63 V DC, this connector ensures a stable connection with its 4-pole design Additionally, it provides excellent insulation resistance of at least 100 MΩ, making it a dependable choice for your connectivity needs.

Features and Benefits:

•Gold-plated contact surface.

•Made of durable TPU material.

•Protection degree IP67 for dust and water resistance.

•Wide temperature range from -30 to +90 °C.

•Insulation resistance of ≥ 100 MΩ.

•Supports nominal current of 12 A.

Specifications:
