2119770000 - RoHS Compliant M12 D-Sub Connector, IP30, 12 MBit/s

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

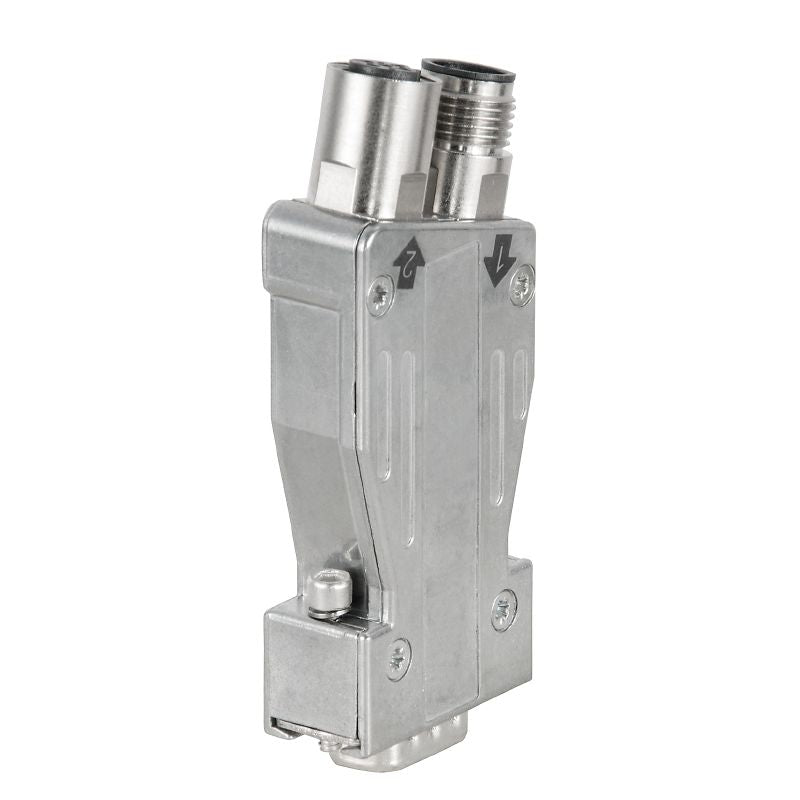

Introducing the PB-DP SUB-D M12 180K OS connector, engineered to meet RoHS compliance requirements This connector features a 9-pole D-Sub BUS interface designed with a B-coded male and female assembly, specifically configured for pins 2 and 4 Capable of transmitting data at speeds of 12 MBit/s, it is housed in a robust ZnAl material that ensures resilience With a temperature tolerance ranging from -20 to +70 °C, this connector is built to endure up to 200 plugging cycles.

Additionally, it boasts an IP30 protection rating, making it a reliable choice for various applications.

Features and Benefits:

•Plug-in connector adheres to PROFIBUS specifications.

•Interlock secured with UNC4-40.

•Outgoing elbow features a 180° angle.

•No terminating resistor available.

•Tightening torque of 0.3 Nm.

Specifications:
