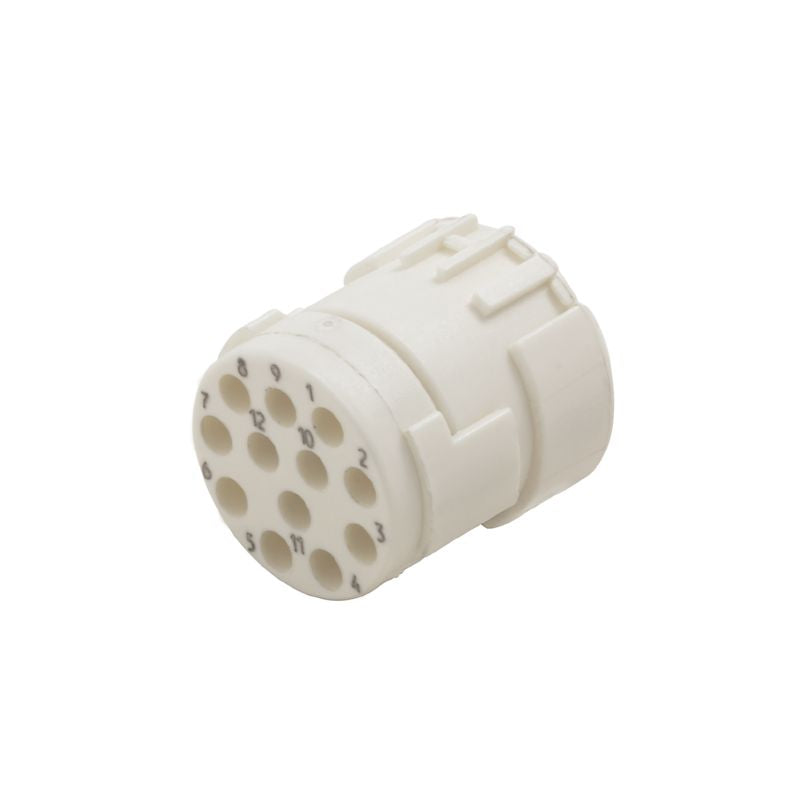

1995850000 - Female Connector, 12 Poles, 8A, Thermoplastic Construction

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-M23-BE-12, a versatile sensor and actuator plug-in connector ideal for a range of applications Crafted from durable thermoplastic polyamide PA 6 and PBT, this connector is built to last It meets RoHS standards with no exemptions and holds a UL file number E344862, verifying its compliance with safety regulations This female connector supports a nominal current of 8 A and a voltage of 200 V, accommodating up to 12 poles.

With an impressive capacity for over 1000 plugging cycles, it operates effectively in environments classified under pollution severity 3.

Features and Benefits:

•RoHS Compliant without exemption.

•No SVHC above 0.1 wt%.

•Housing made from thermoplastic polyamide PA 6, PBT.

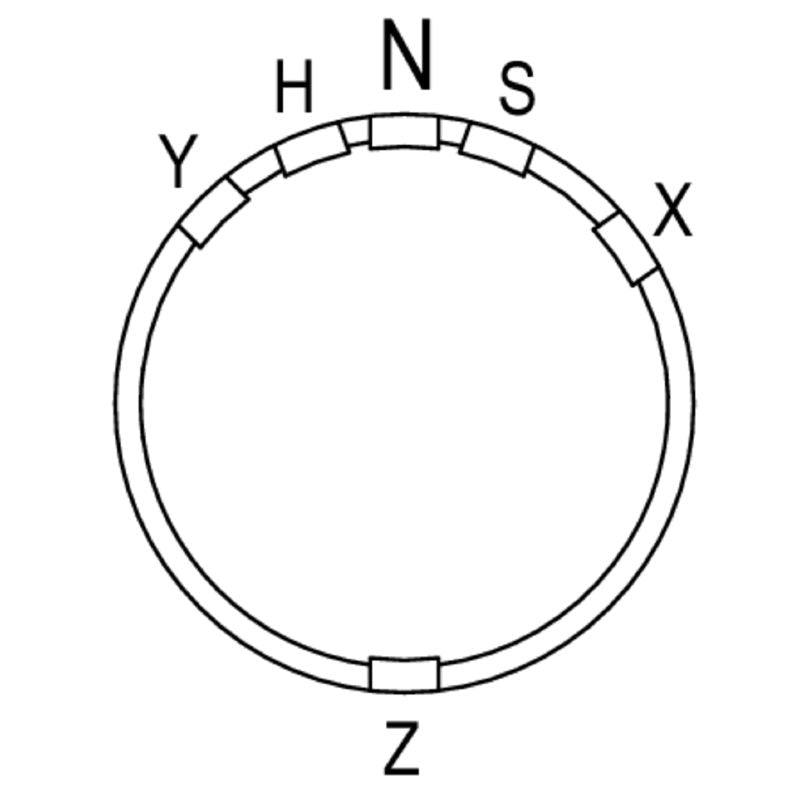

•Coding possibilities for M23 signal inserts include H-coded, N-coded, S-coded, X-coded, Y-coded, and Z-coded.

•Rated current for 1 mm contact is 8 A.

•Type of connection is crimp connection.

Specifications:
