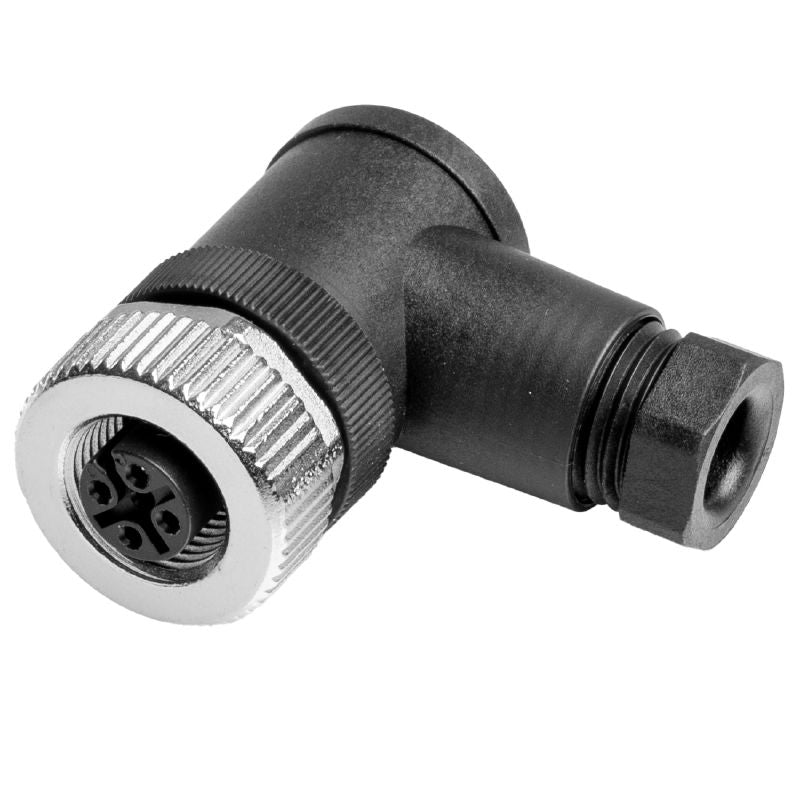

1967880000 - M12 Field Attachable Connector, IP67, 4-Pole, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 field attachable connector, model SAIBWZ-P-4/6-M12, ideal for various applications This connector is RoHS compliant and features a premium gold-plated contact surface It has four poles and accommodates conductor cross-sections ranging from 014 mm² to a maximum of 05 mm² The design offers flexibility with a cable diameter that can vary between 4 mm to 6 mm Utilizing a tension-clamp connection method, this connector provides robust performance with an IP67 rating, ensuring resistance to dust and water.

The housing is crafted from durable PA, complemented by a threaded ring made of diecast zinc for added strength Built to withstand harsh conditions, this connector operates effectively in temperatures from -40 °C to +85 °C It supports a nominal current of 4 A and a nominal voltage of 250 V, with an impressive insulation resistance of 10^8 Ω Additionally, it is capable of enduring more than 100 mating cycles, making it a reliable choice for demanding environments.

Features and Benefits:

•RoHS Compliant without exemption.

•Gold-plated contact surface.

•IP67 protection degree.

•Supports a temperature range from -40 to +85 °C.

•Tension-clamp connection method.

•Good insulation resistance.

Specifications:
