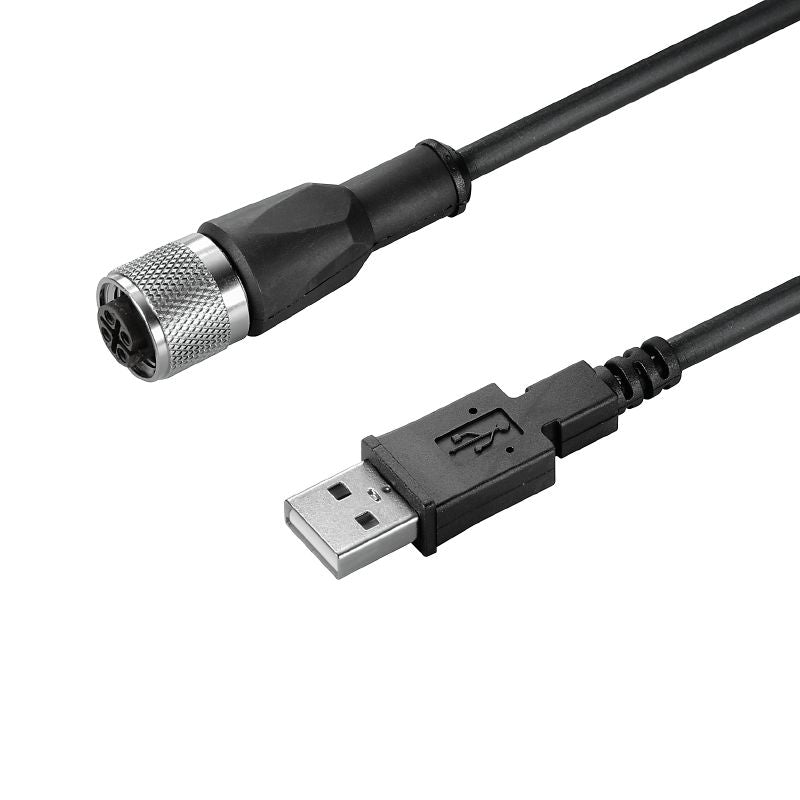

1962800150 - 1.5m M12 5-Pole Shielded Connecting Line with Female Socket

1962800150 - 1.5m M12 5-Pole Shielded Connecting Line with Female Socket

SKU: SKU: 1962800150   Download PDF

Select a Variant:
  • 1962800150 - 1.5m M12 5-Pole Shielded Connecting Line with Female Socket
Qty:
Regular price Now $88.90   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $88.90 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable M12 bus and connecting line, measuring 15 meters in length This straight cable is designed with a female socket and features a robust shielded construction Although it does not come with an LED indicator, it meets RoHS compliance standards for safety and environmental responsibility The cable's composition includes a 5-pole configuration with 4 individual wires, all encased in a durable PUR sheath.

Finished in an elegant black color, it also conforms to UL AWM style 20963 specifications (operating at 80 °C / 30 V), making it a dependable choice for your electrical connections.

Features and Benefits:

    •Shielded design for enhanced protection.

    •PUR sheath material offering durability.

    •Gold-plated contact surface for reliable connections.

    •IP67 protection degree ensuring dust and water resistance.

    •Temperature range of -25…+80 °C.

Specifications:

 Cable length 1.5 m

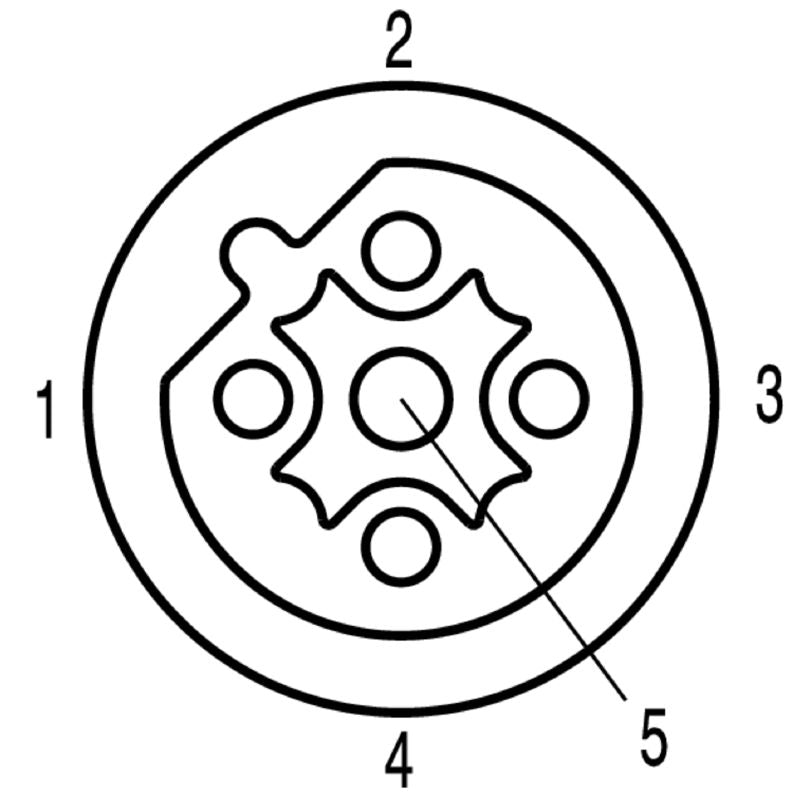

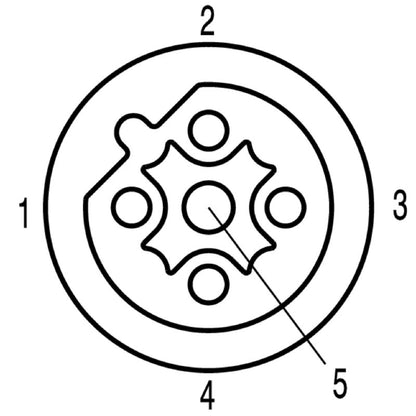

 Number of poles 5
 Number of wires 4
 Sheathing colour black
 Insulation PE
 Nominal current 1 A
 Nominal voltage 5 V
 Insulation resistance 10^8 Ω
 Protection degree IP67
 Connection thread M12
 Housing main material PUR
 Threaded ring material Brass, nickel-plated
 Tightening torque M12: 0.8 - 1.2 Nm
 Halogen No
 Classifications EC002599
