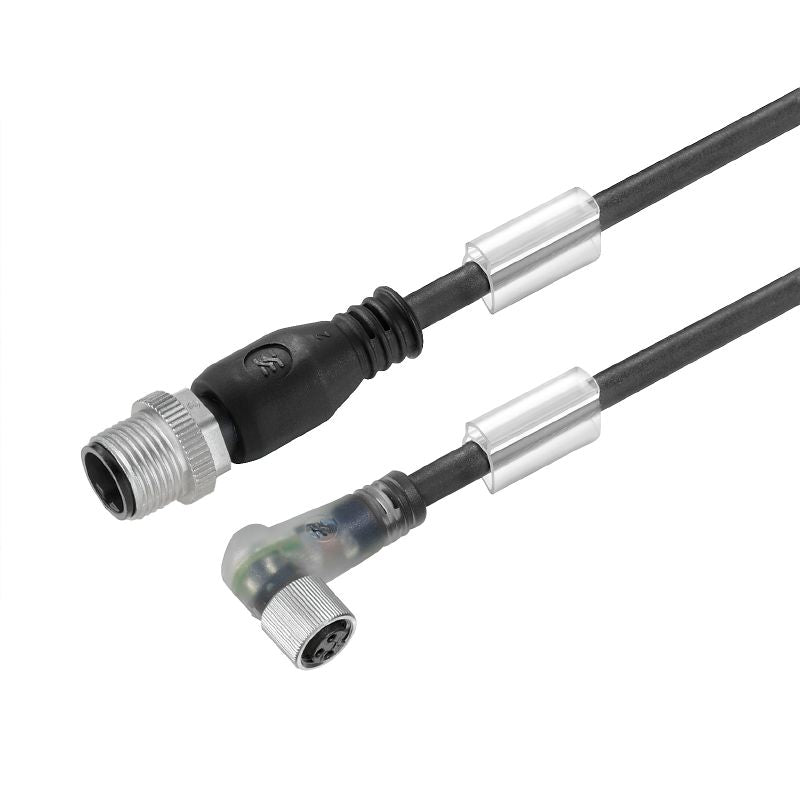

1962300150 - 1.5m Non-Shielded M12/M8 Sensor Line with LED Integration

1962300150 - 1.5m Non-Shielded M12/M8 Sensor Line with LED Integration

SKU: SKU: 1962300150 Download PDF

Variant:
  • 1962300150 - 1.5m Non-Shielded M12/M8 Sensor Line with LED Integration
Regular price Now $16.09
Regular price BEFORE   $0.00 Sale price Now $16.09
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity with this Sensor/actuator connection line, featuring M12/M8 connectors with 4 poles and a generous length of 15 meters Designed for efficient use, it boasts a straight pin socket at a 90-degree angle This non-shielded line is crafted from PVC sheath material, incorporates integrated LED lighting, and is halogen-free Plus, it complies with ROHS standards, ensuring an eco-friendly choice.

Features and Benefits:

    •LED present.

    •Appropriate for M12/M8 connections.

    •Made with PVC sheath material.

    •Contains halogen.

Specifications:

 Cable length 1.5 m
 Core cross-section 0.25 mm²
 Number of poles 4
 Outside diameter 4.8 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP65, IP66, IP67, IP68
 Insulation resistance 10^8 Ω
 Threaded ring material Diecast zinc
