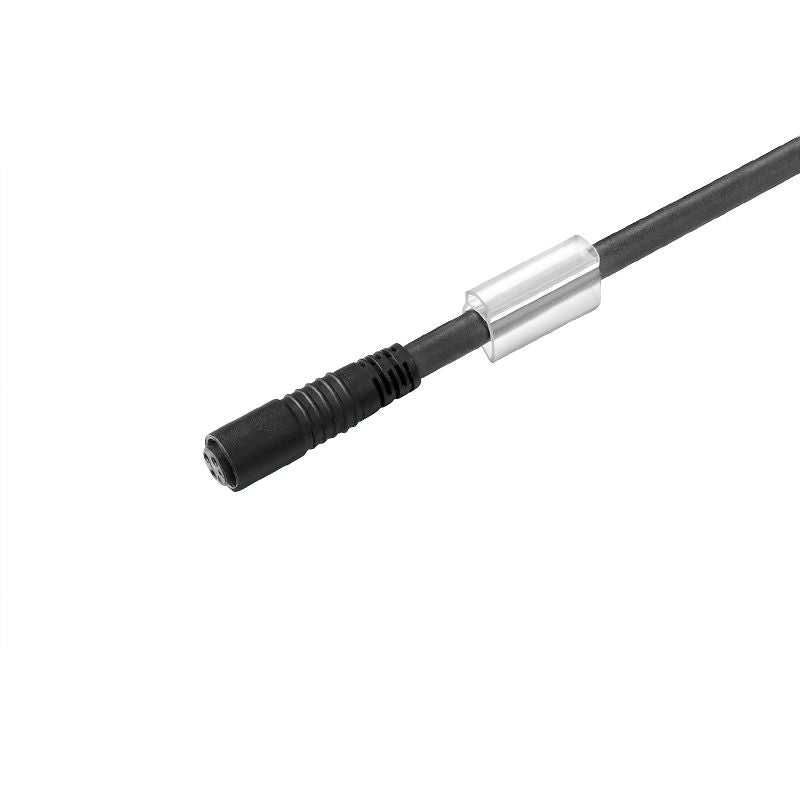

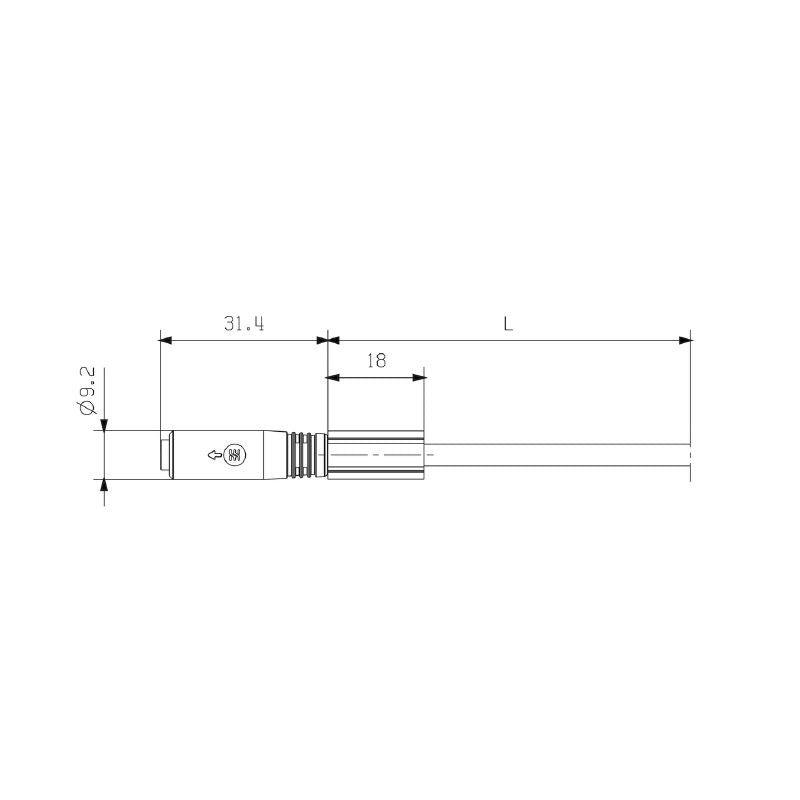

1948730150 - 1.5m PVC Sensor/Actuator Line with 4-Pole Female Socket

1948730150 - 1.5m PVC Sensor/Actuator Line with 4-Pole Female Socket

SKU: SKU: 1948730150   Download PDF

Select a Variant:
  • 1948730150 - 1.5m PVC Sensor/Actuator Line with 4-Pole Female Socket
Qty:
Regular price Now $6.69   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $6.69 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our versatile sensor/actuator cable, featuring a female connector with four poles and a generous length of 15 meters This cable is specifically designed without a connector at one end, providing flexibility for your specific requirements Crafted from durable PVC material, it is unshielded and does not incorporate an LED indicator This product adheres to RoHS standards and holds a certification number E307231 from cULus, ensuring quality and compliance for your projects.

Features and Benefits:

    •Four-pole connection.

    •1.5 meters long.

    •Straight female socket design.

    •PVC sheath material.

    •RoHS compliant.

Specifications:

 Cable length 1.5 m
 Number of poles 4
 Core cross-section 0.25 mm²
 Outside diameter 4.8 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 30 V
 Insulation resistance 10^8 Ω
 IP rating IP65
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Certification E307231
 Housing main material PUR
 Sheath material PVC
 Cladding in accordance with UL AWM style 2464 (80 °C / 300 V)
