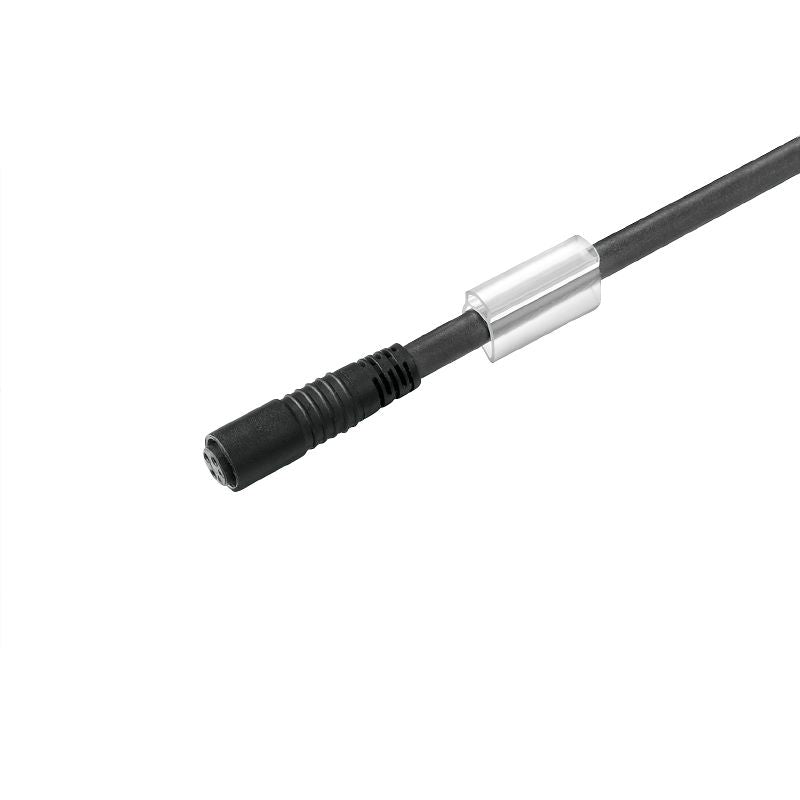

1948710300 - 3m PVC Sensor/Actuator Line with Female Socket Configuration

1948710300 - 3m PVC Sensor/Actuator Line with Female Socket Configuration

SKU: SKU: 1948710300 Download PDF

Variant:
  • 1948710300 - 3m PVC Sensor/Actuator Line with Female Socket Configuration
Regular price Now $6.93
Regular price BEFORE   $0.00 Sale price Now $6.93
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of this 3-meter sensor/actuator cable, equipped with a female socket configuration but without a connector Its straight design makes it ideal for various applications, and it is crafted from halogen-free PVC material, ensuring safety and durability This cable features 3 poles and meets ROHS standards, backed by a cULus certificate number E307231 Make this reliable component a part of your next project.

Features and Benefits:

    •3 m length with female socket configuration.

    •Straight design without shield.

    •Halogen-free material.

Specifications:

 Cable length 3 m
 Core cross-section 0.25 mm²
 Outside diameter 4.5 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP65 when screwed in
 Housing main material PUR
 Insulation resistance 10^8 Ω
 Number of poles 3
 Sheath material PVC
 Plugging cycles ≥ 100
