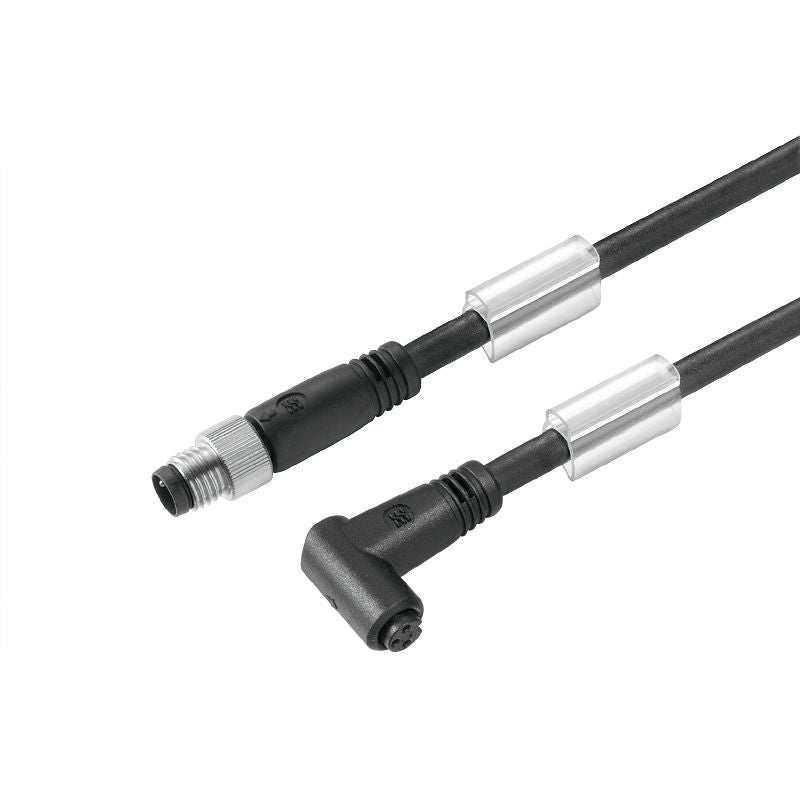

1948691000 - 10m M8 4-Pole Connecting Line for Sensors & Actuators

1948691000 - 10m M8 4-Pole Connecting Line for Sensors & Actuators

SKU: SKU: 1948691000   Download PDF

Select a Variant:
  • 1948691000 - 10m M8 4-Pole Connecting Line for Sensors & Actuators
Qty:
Regular price Now $19.48   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $19.48 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

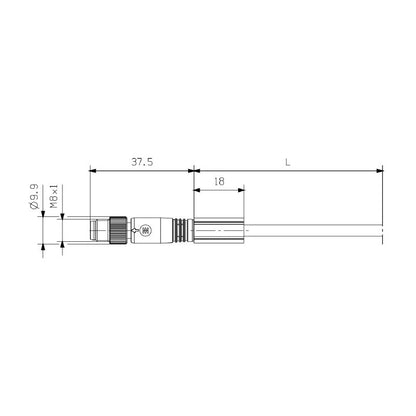

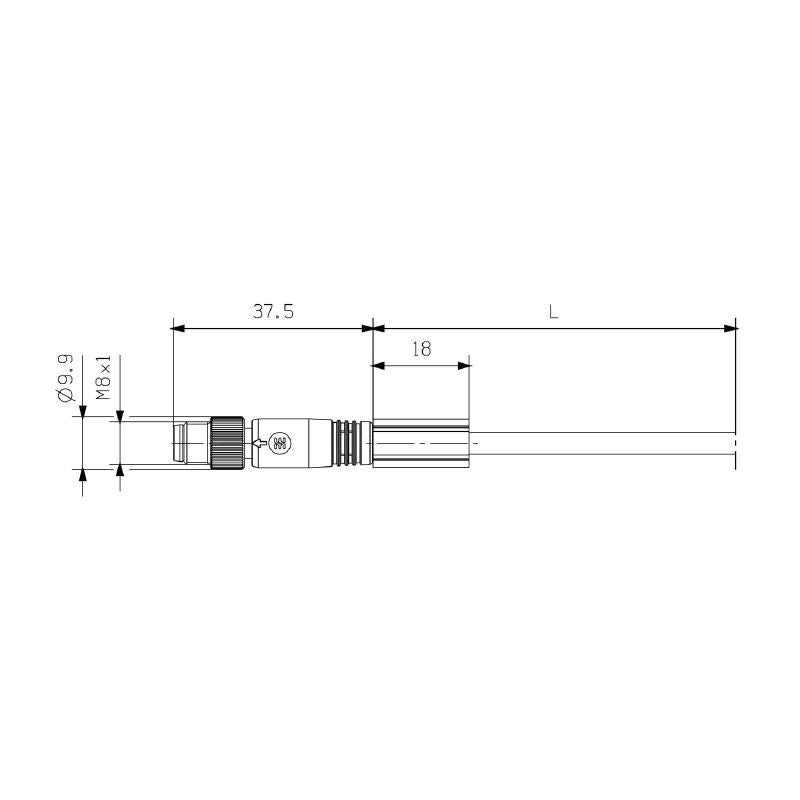

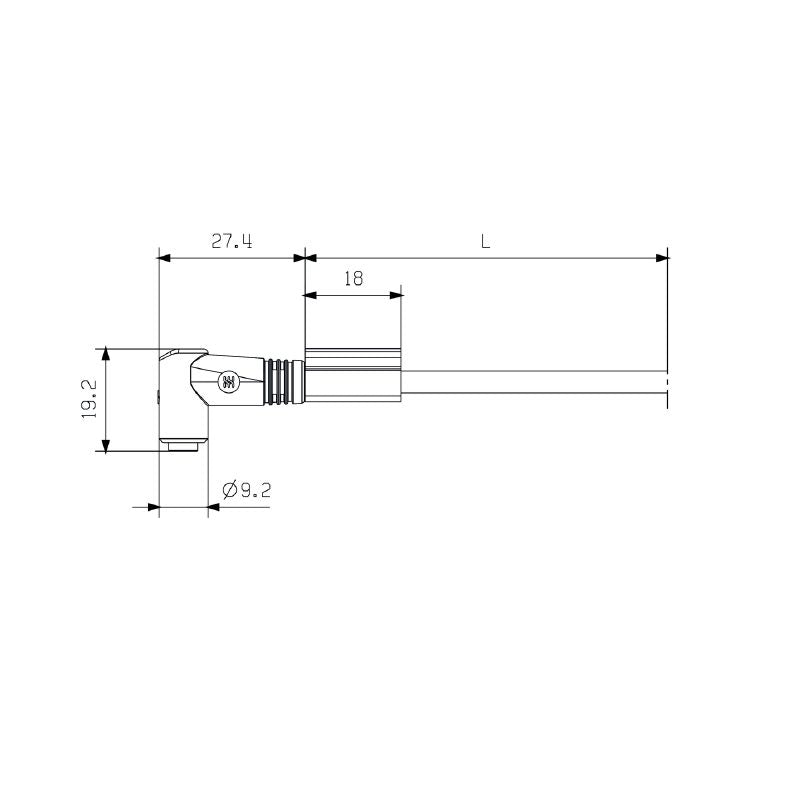

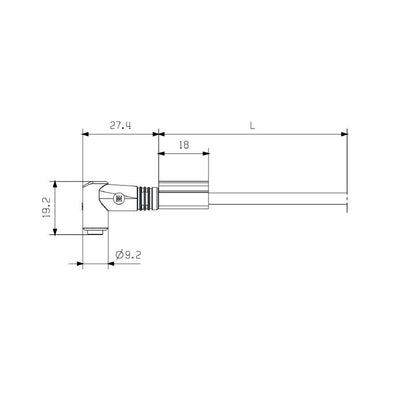

Enhance your sensor and actuator setups with this versatile connecting line, designed with M8 connectors in a 4-pole configuration Spanning a generous 10 meters, it features a straight socket paired with a 90-degree angle for flexible installation This unshielded line is crafted from durable PVC material and adheres to RoHS regulations, containing no halogen components, making it a reliable choice for your electronic projects.

Features and Benefits:

    •Compliant with RoHS exemption.

    •Core cross-section of 0.25 mm².

    •Gold-plated contact surface.

    •IP65 protection degree when screwed in.

    •Cable length of 10 m.

    •Temperature range for moving applications: -5 to 80 °C.

    •Temperature range for stationary use: -30 to 80 °C.

Specifications:

 Cable length 10 m

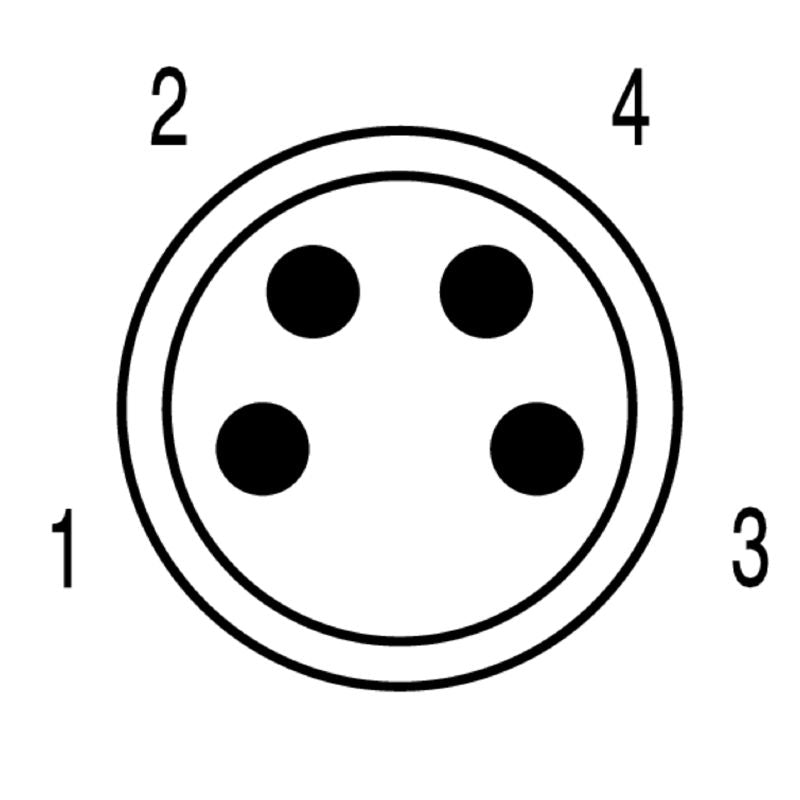

 Number of poles 4
 Outer diameter 4.8 mm ± 0.2 mm
 Sheath material PVC
 Housing main material PUR
 Insulation resistance 10^8 Ω
 Nominal current 4 A
 Nominal voltage 30 V
 Plugging cycles ≥ 100
 Temperature range of housing -25…+85 °C
 Threaded ring material Brass, nickel-plated
 Tightening torque M8: 0.5 - 0.6 Nm
