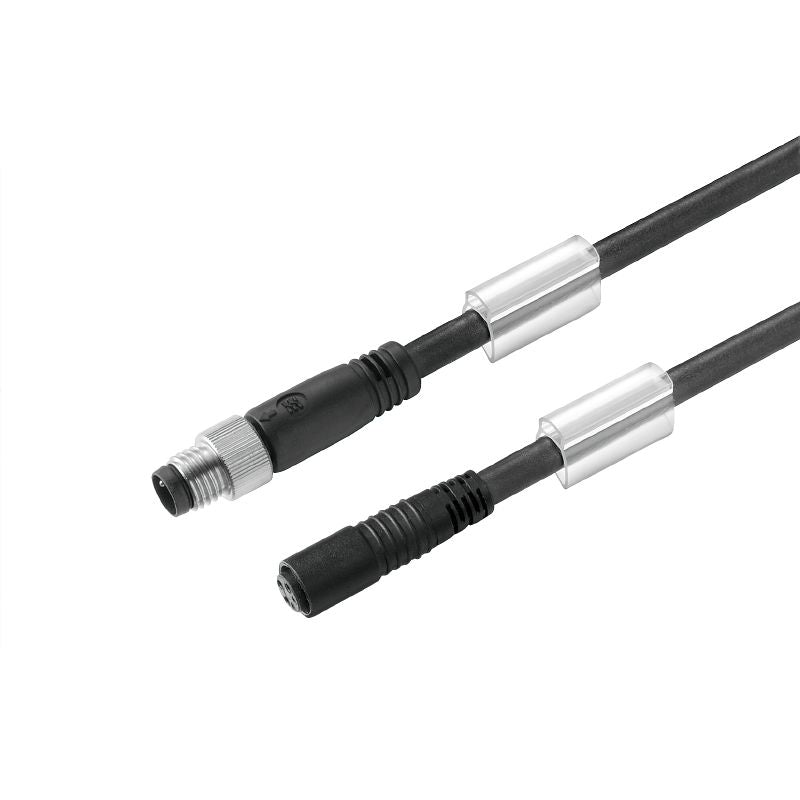

1948650300 - 3m M8 Sensor/Actuator Connecting Line, PVC Sheath

1948650300 - 3m M8 Sensor/Actuator Connecting Line, PVC Sheath

SKU: SKU: 1948650300 Download PDF

Variant:
  • 1948650300 - 3m M8 Sensor/Actuator Connecting Line, PVC Sheath
Regular price Now $11.84
Regular price BEFORE   $0.00 Sale price Now $11.84
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your sensor and actuator connections with this specialized cable featuring M8 connectors at both ends Spanning 3 meters in length, the cable is equipped with three poles and comes with straight socket configurations Crafted from durable PVC, this unshielded design adheres to ROHS regulations, ensuring a reliable and environmentally-friendly option for your connectivity needs.

Features and Benefits:

    •Halogen free PVC material.

    •Gold-plated contact surfaces.

    •IP65 rated when properly installed.

    •Nominal current capacity of 4A.

    •Nominal voltage capacity of 60V.

    •Utilizes M8 connection standard.

Specifications:

 Cable length 3 m
 Core cross-section 0.25 mm²
 Outer diameter 4.5 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Protection degree IP65
 Connection thread M8 / M8
 Housing main material PUR
 Sheath material PVC
