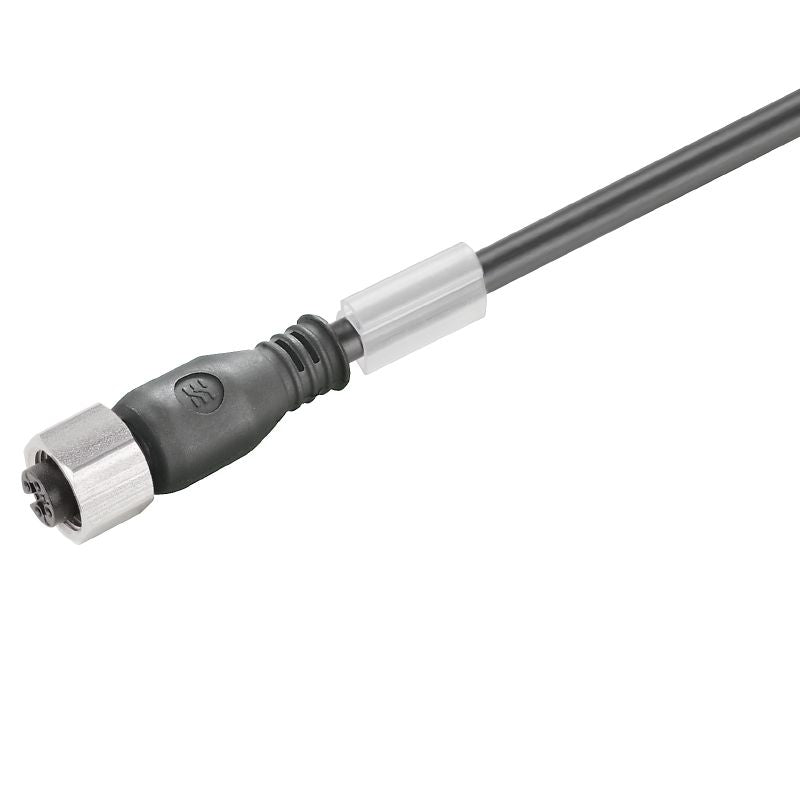

1939411000 - 10m Shielded Sensor/Actuator Line with Female Socket

1939411000 - 10m Shielded Sensor/Actuator Line with Female Socket

SKU: SKU: 1939411000

Variant:
  • 1939411000 - 10m Shielded Sensor/Actuator Line with Female Socket
Regular price Now $17.57
Regular price BEFORE   $0.00 Sale price Now $17.57
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile sensor/actuator line featuring a generous 10-meter length, equipped with a straight female socket This configuration includes 3 poles and is designed without connectors on one end Its shielded design ensures reliable performance, while the sheath is crafted from halogen-free PUR material for enhanced safety Note that this model does not come with LED indicators, making it a streamlined choice for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS and has exemption 6c.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

Specifications:

 Diameter 3.8 mm
 Cable length 10 m
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 250 V
 Insulation resistance 10^8 Ω
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Plugging cycles ≥ 100
 Contact surface Gold-plated
 Housing main material PUR
