1939410500 - 5m PUR Sensor/Actuator Line with 3 Poles

1939410500 - 5m PUR Sensor/Actuator Line with 3 Poles

SKU: SKU: 1939410500

Variant:
  • 1939410500 - 5m PUR Sensor/Actuator Line with 3 Poles
Regular price Now $13.05
Regular price BEFORE   $0.00 Sale price Now $13.05
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

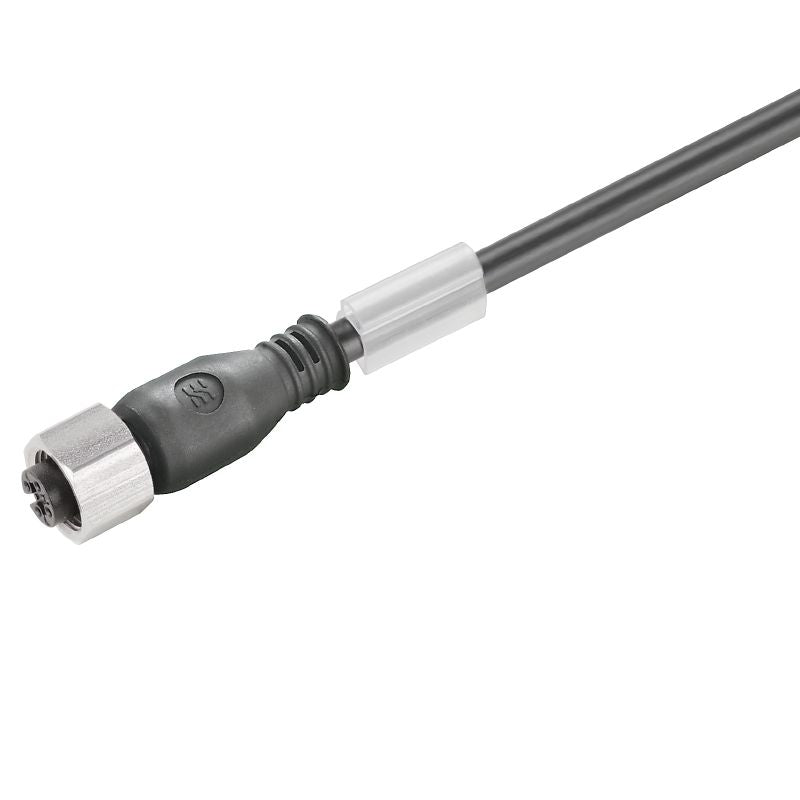

Discover this versatile sensor/actuator line product featuring a straight female socket type designed without a connector The cable extends 5 meters and consists of 3 poles Crafted from halogen-free PUR material, it offers a robust solution with no shielding or LED elements, perfect for a variety of applications.

Features and Benefits:

    •Compliant with RoHS and REACH SVHC standards.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

    •A-coded connection.

    •SN 316L stainless steel threaded ring material.

Specifications:

 Diameter 3.8 mm
 Cable length 5 m
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 250 V
 Insulation resistance 10^8 Ω
 Outer cladding in accordance with UL AWM style 20549 (80 °C / 300 V)
 Protection degree IP65, IP66, IP67, IP68
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Bending cycles 12 Mio
 Plugging cycles ≥ 100
