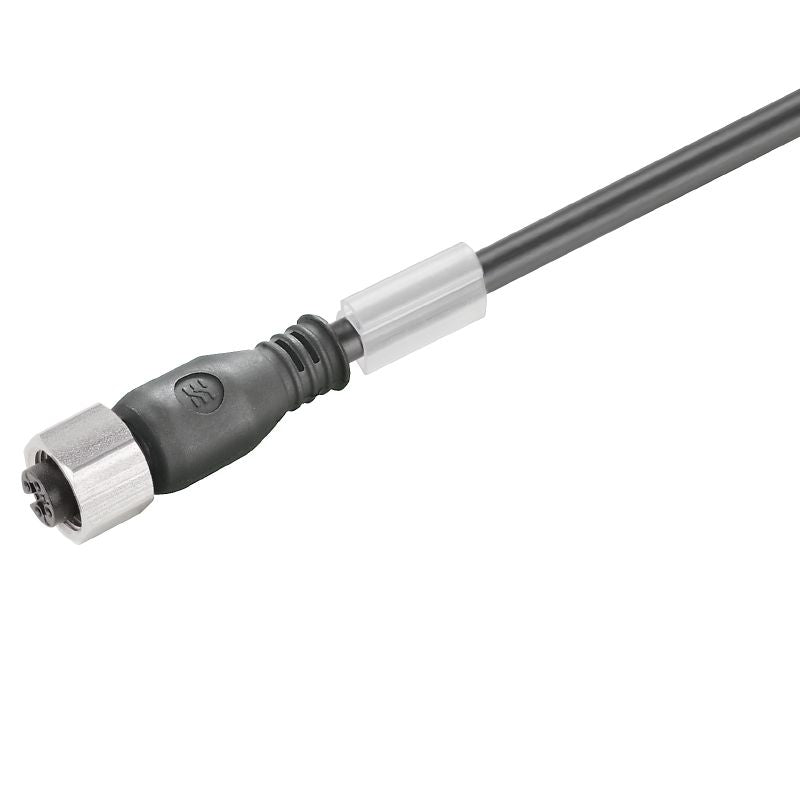

1939410150 - 1.5m M12 3-Pole Sensor/Actuator Line, Unshielded, PUR Sheath

1939410150 - 1.5m M12 3-Pole Sensor/Actuator Line, Unshielded, PUR Sheath

SKU: SKU: 1939410150

Select a Variant:
  • 1939410150 - 1.5m M12 3-Pole Sensor/Actuator Line, Unshielded, PUR Sheath
Qty:
Regular price Now $15.65   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $15.65 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the M12 sensor/actuator series component, designed with versatility in mind This model features a 15-meter length and comes with a straight female socket that boasts three poles Notably, it is unshielded and crafted from halogen-free PUR sheath material, ensuring reliability in various applications without compromising on safety Ideal for a range of projects, this connector is a solid choice for your sensor and actuator needs.

Features and Benefits:

    •Compliant with ROHS regulations.

    •Zero halogen content.

    •Hydrolysis and microbe resistant.

    •LABS-free construction.

    •High flexibility with a minimum bending radius of 10 times the cable diameter.

    •Suitable for cable carriers.

Specifications:

 Certificate no. (cULus) E307231
 Diameter 3.8 mm
 Core cross-section 0.34 mm²
 Bending cycles 12 Mio
 Nominal current 4 A
 Nominal voltage 250 V
 Protection degree IP65, IP66, IP67, IP68
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Sheath material PUR
 Outside diameter 3.8 mm ± 0.15 mm
 Plugging cycles ≥ 100
