Product Information

Description:

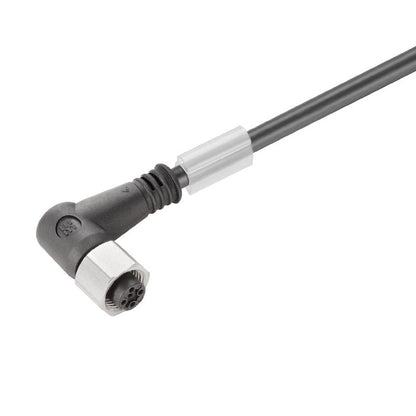

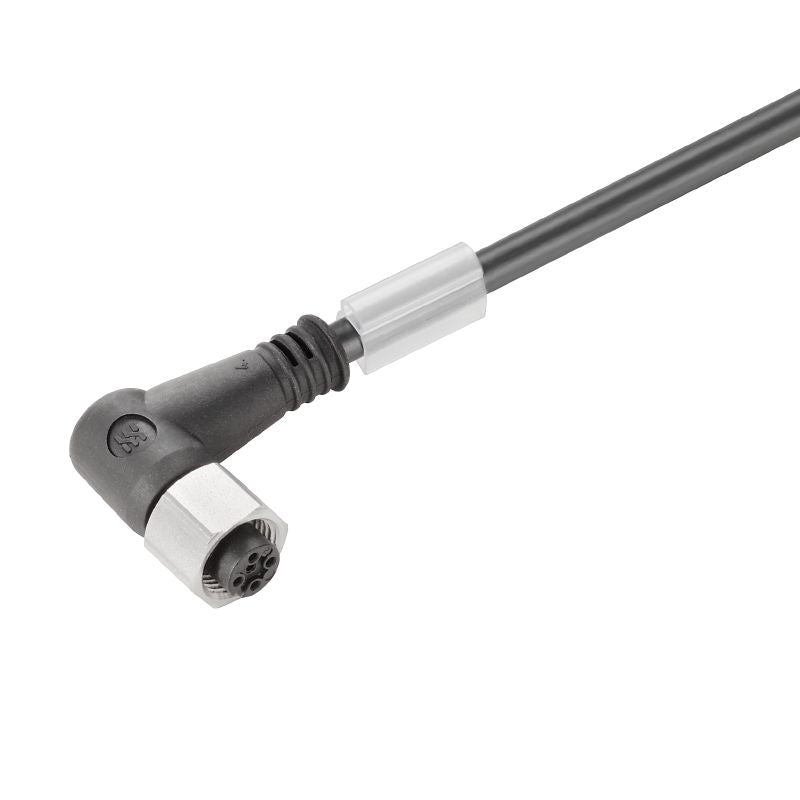

Introducing a versatile product from our sensor and actuator collection, this item features an M12 connector type and boasts a generous length of 5 meters, although one end is left unconnected for your specific requirements The design is thoughtfully angled and is free from shielding or LED indicators, making it an ideal choice for straightforward applications Crafted with a PUR sheath, this product is halogen-free, ensuring safety and compliance with various industry standards, including RoHS and cULus certification.

With a nominal current rating of 4A and the capability to withstand a voltage of 250V, it promises reliable performance for your needs.

Features and Benefits:

    •Compliance with RoHS standards.

    •Angled socket without connector.

    •Sheath material made from PUR.

    •Hydrolysis and microbe resistant.

    •Gold-plated contact surface.

    •Suitable for cable carriers.

    •IP65/IP66/IP67/IP68 protection degree.

    •Temperature range: -25...60°C moving, -50...80°C stationary.

Specifications:

 Diameter 3.8 mm
 Cable length 5 m
 Number of poles 3
 Core cross-section 0.34 mm²
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Protection degree IP65/IP66/IP67/IP68
 Nominal current 4 A
 Nominal voltage 250 V
 Temperature range of housing -25…+85 °C
 Connection thread M12
