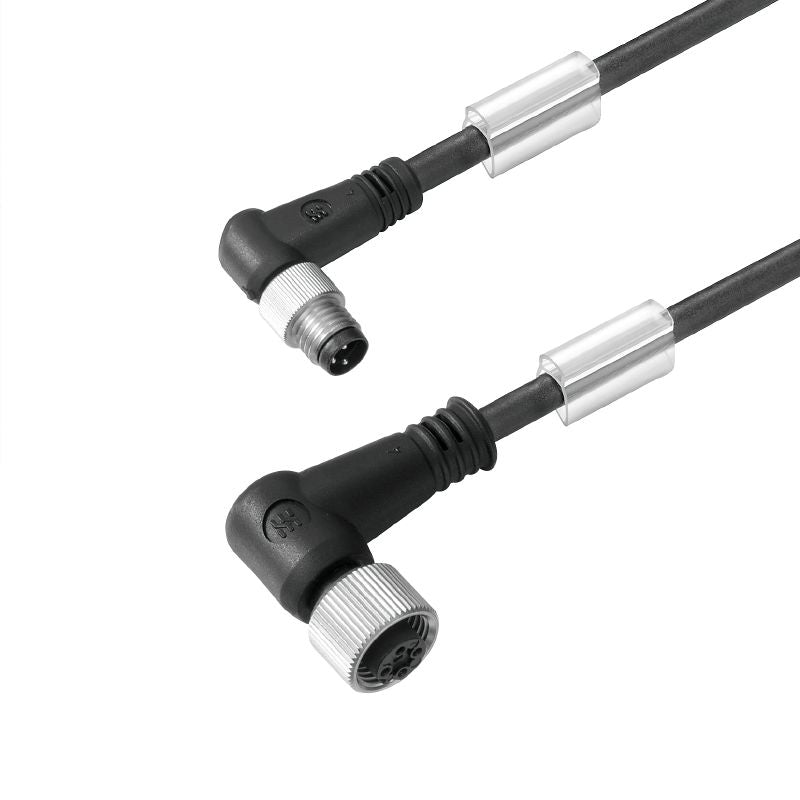

1938280500 - 5m PVC M8/M12 Connecting Line with 4 Poles

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of this 5-meter connecting line from our sensor and actuator range Featuring 4 poles and straight socket pins oriented at a 90-degree angle, this cable is ideal for a variety of applications Constructed from halogenated PVC, it combines durability with flexibility, though it does not include shielding A practical choice for all your connection needs.

Features and Benefits:

•Conforms to RoHS standards.

•Available until November 30, 2025.

•Gross weight is 100g.

•Coding is A-coded.

•Connection thread is M8 / M12.

•Contact surface is gold-plated.

•Housing material is PUR.

•Insulation resistance is 10^8 Ω.

•Nominal current is 4A.

•Nominal voltage is 30V.

•Plugs are rated for at least 100 cycles.

•Protection degree is IP65, IP66, IP67, IP68.

•Temperature range for stationary use is -30 to 80 °C.

•Temperature range for moving use is -5 to 80 °C.

Specifications:
