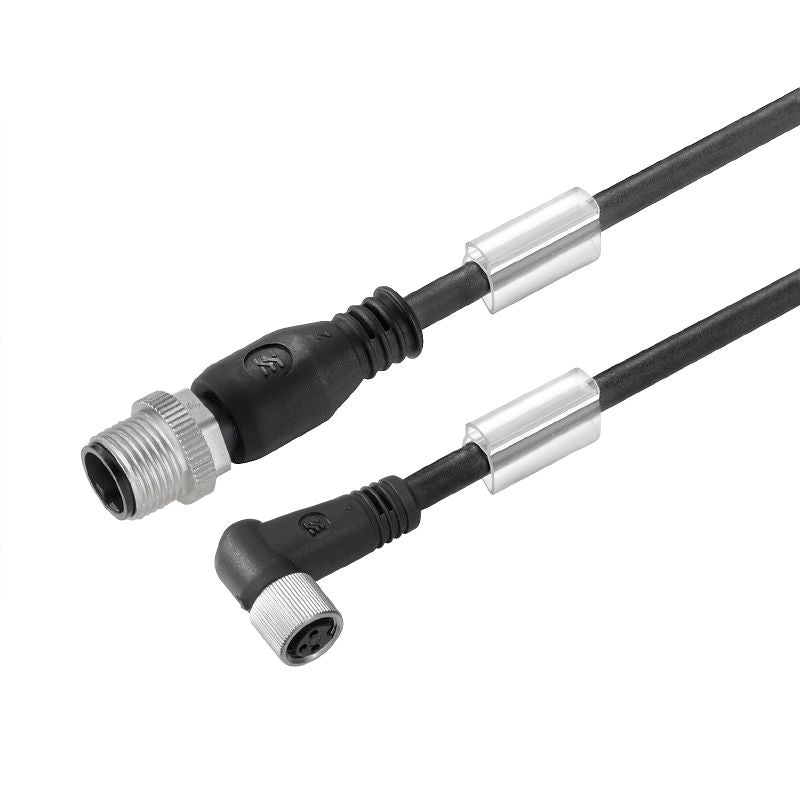

1938210150 - 1.5m M12/M8 Sensor Connection Line, 4-Pole, PVC Sheath

1938210150 - 1.5m M12/M8 Sensor Connection Line, 4-Pole, PVC Sheath

SKU: SKU: 1938210150   Download PDF

Select a Variant:
  • 1938210150 - 1.5m M12/M8 Sensor Connection Line, 4-Pole, PVC Sheath
Qty:
Regular price Now $12.39   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $12.39 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

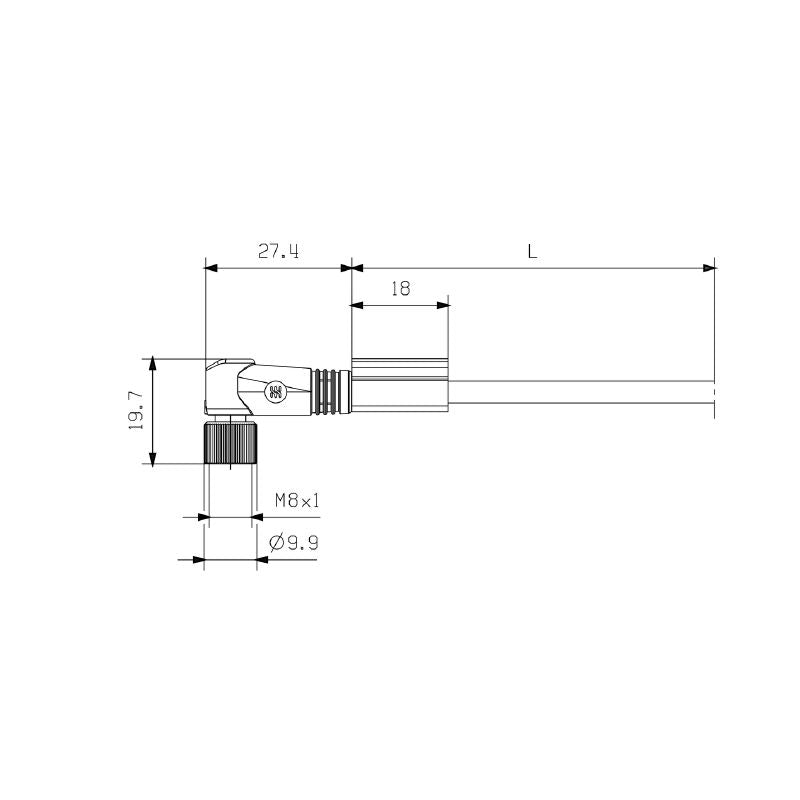

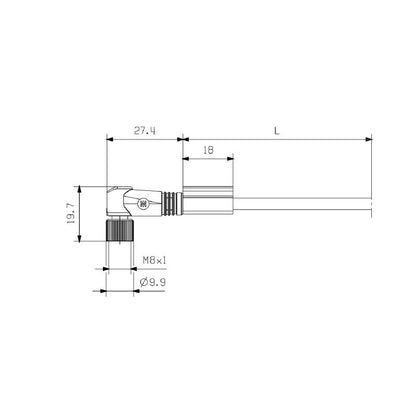

Introducing a versatile sensor and actuator connection line equipped with M12 and M8 connectors This 15-meter long cable features four poles and is designed with a straight socket and a 90-degree angled connector Crafted from PVC containing halogens, this unshielded line prioritizes functionality without LED features Perfect for various applications requiring reliable connections.

Features and Benefits:

    •Measurement of 1.5 m.

    •Made of PVC sheath material.

    •Halogen content present.

    •Four-pole configuration.

Specifications:

 Cable length 1.5 m
 Core cross-section 0.25 mm²
 Number of poles 4
 Outside diameter 4.8 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 30 V
 Protection degree IP65, IP66, IP67, IP68, IP69
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Connector standard IEC 61076-2-101, IEC 61076-2-104
 Housing main material PUR
 Threaded ring material Diecast zinc
 Tightening torque M8: 0.5 - 0.6 Nm, M12: 0.8 - 1.2 Nm
