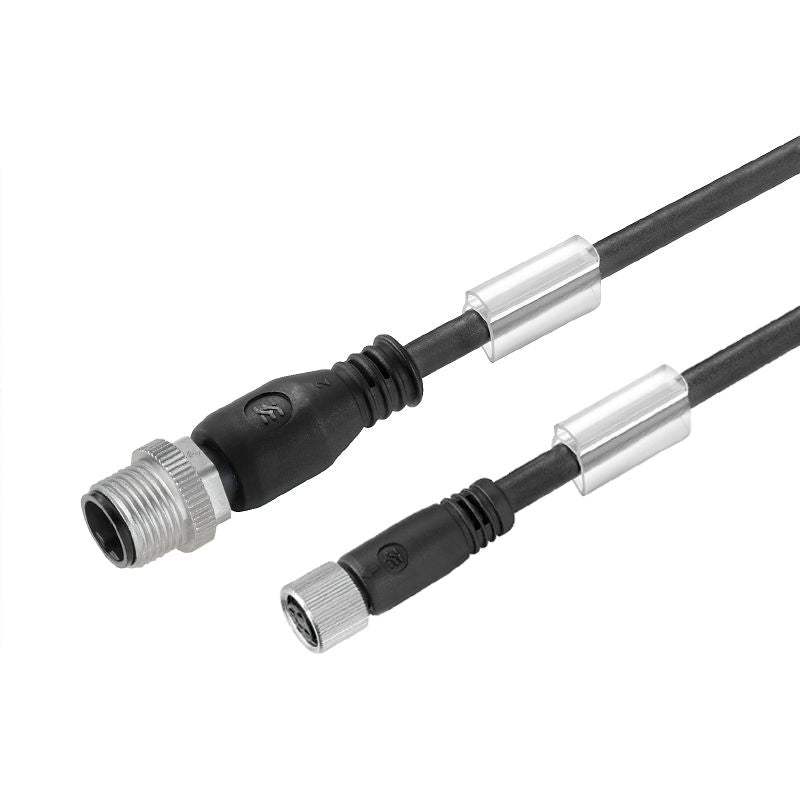

1938200050 - 0.5m M12/M8 Sensor Connecting Line, 4 Poles, PVC Sheath

1938200050 - 0.5m M12/M8 Sensor Connecting Line, 4 Poles, PVC Sheath

SKU: SKU: 1938200050   Download PDF

Select a Variant:
  • 1938200050 - 0.5m M12/M8 Sensor Connecting Line, 4 Poles, PVC Sheath
Qty:
Regular price Now $11.47   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $11.47 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile connecting line designed for sensor and actuator use This durable 05-meter cable features 4 poles, providing a reliable direct connection from pin to socket Crafted from halogenated PVC for its sheath, this product is RoHS compliant, ensuring it meets environmental safety standards Please note that this line does not include shielding or an LED indicator, making it straightforward for your connection needs.

Features and Benefits:

    •Halogenated PVC sheathing material.

    •Straight pin to socket configuration.

    •RoHS compliant with an exemption.

    •Lead-free insulation.

Specifications:

 Cable length 0.5 m
 Number of poles 4
 Core cross-section 0.25 mm²
 Outer diameter 4.8 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Nominal current 4 A
 Nominal voltage 30 V
 Insulation resistance 10^8 Ω
 Protection degree IP67, IP68 when fully mounted, IP65, IP66
 Plug left M12, A-coded, IP69, male contact, straight, Plastic, unshielded
 Plug right M8, IP69, female contact, straight, Plastic, LED, unshielded
