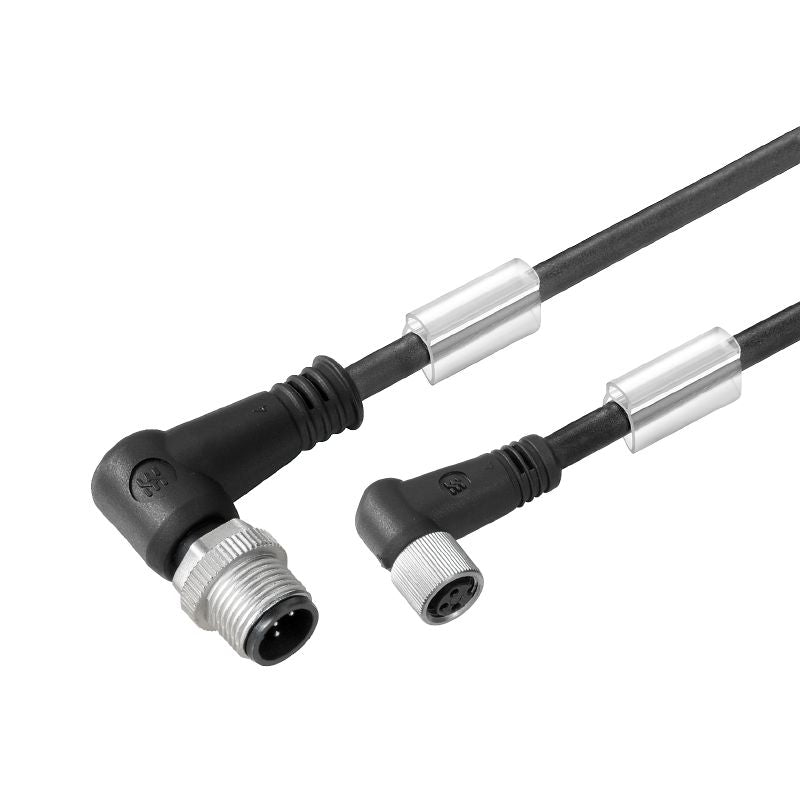

1938190500 - 5m PVC Sensor/Actuator Line with 3-Pole Connectors

1938190500 - 5m PVC Sensor/Actuator Line with 3-Pole Connectors

SKU: SKU: 1938190500   Download PDF

Select a Variant:
  • 1938190500 - 5m PVC Sensor/Actuator Line with 3-Pole Connectors
Qty:
Regular price Now $13.51   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $13.51 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIL-M12WM8W-3-50V connecting line, expertly crafted for sensor and actuator integration This versatile line spans 5 meters and features a reliable 3-pole configuration with angled connectors for M12 and M8 compatibility Designed with a non-shielded PVC sheath, it is both halogen-free and adheres to RoHS compliance standards under the applicable exemptions, making it a safe choice for various applications.

Features and Benefits:

    •Compliant with RoHS.

    •LED: No.

    •Sheath material: PVC.

    •Halogen: Yes.

Specifications:

 Cable length 5 m
 Core cross-section 0.25 mm²
 Number of poles 3
 Outside diameter 4.5 mm ± 0.2 mm
 Insulation resistance 10^8 Ω
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP67, IP68 when fully mounted, IP65, IP66
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Plugging cycles ≥ 100
 Connection thread M12 / M8
 Coding M12 = A-coded, M8 = none
 Contact surface Gold-plated
