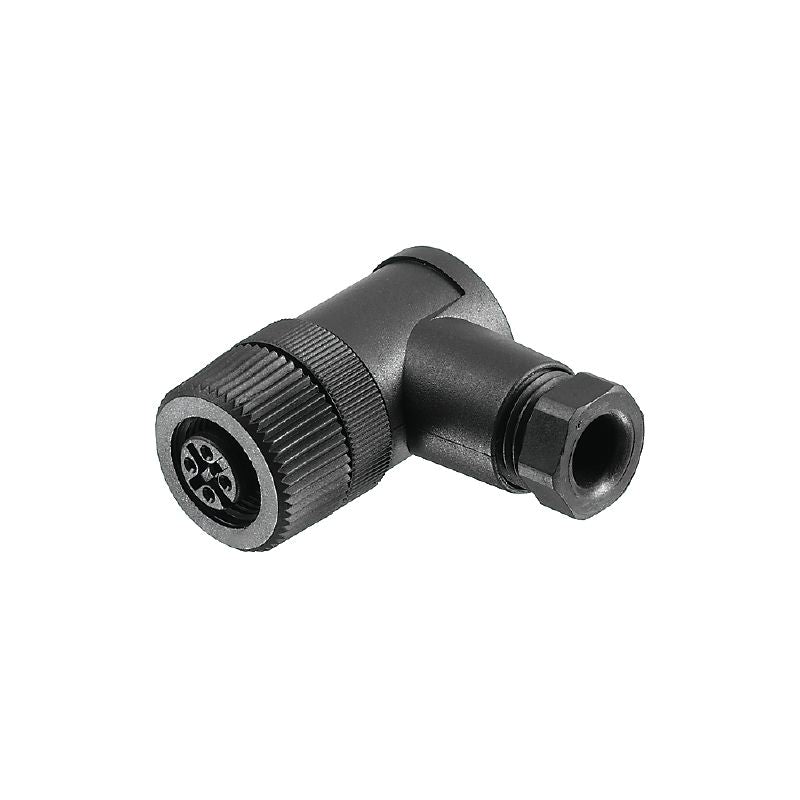

1935610000 - M12 Field-Attachable Connector, 4 Poles, IP67 Rating

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile field-attachable connector tailored for M12 applications This connector meets RoHS standards and holds UL Certificate No E307231 It is designed with 4 poles and accommodates cables with diameters ranging from 4 mm to 6 mm Ideal for wire cross-sections between 014 mm² and 075 mm², it guarantees a reliable connection The contact area is crafted from CuSnZn material, ensuring excellent conductivity and boasts an impressive insulation resistance of 10^8 Ω.

With a rated nominal voltage of 250 V and a nominal current capacity of 4 A, this connector can endure at least 50 plug-in cycles It features an IP67 protection rating, making it suitable for challenging environments with a pollution severity level of 3 Constructed from durable PA material, this connector operates effectively within a temperature range of -40 to +85 °C, and connection is securely made through a reliable screw mechanism.

Features and Benefits:

•RoHS compliant with exemption.

•Suitable for M12 connections.

•High insulation resistance of 10^8 Ω.

•Able to handle a nominal current of 4 A.

•IP67 protection degree.

Specifications:
