1927352000 - 20m M12/M8 Sensor Line with LED Indicator, 3-Pole

1927352000 - 20m M12/M8 Sensor Line with LED Indicator, 3-Pole

SKU: SKU: 1927352000

Select a Variant:
  • 1927352000 - 20m M12/M8 Sensor Line with LED Indicator, 3-Pole
Qty:
Regular price Now $22.04   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $22.04 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

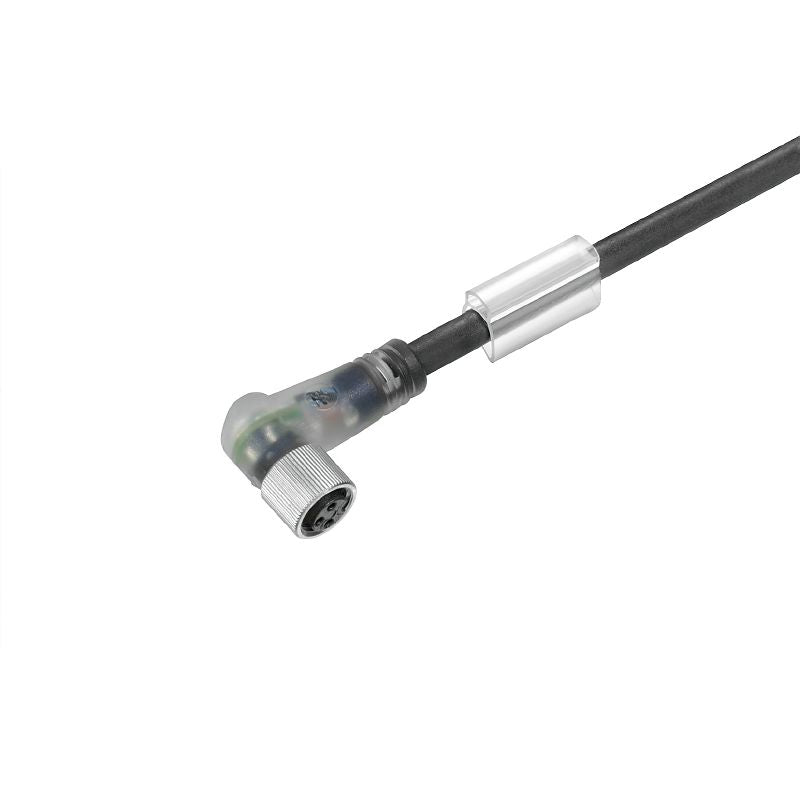

Introducing a versatile sensor/actuator line that boasts a unique M12 / M8 connection at one end, which lacks a connector This product features three poles and extends to an impressive length of 20 meters Its angled socket design enhances accessibility, while the absence of shielding contributes to its streamlined functionality For added convenience, an LED indicator is included to provide visual feedback.

Constructed from PVC, this product is also halogen-free, ensuring safety and compliance with environmental standards.

Features and Benefits:

    •LED indicator present.

    •Socket design is angled.

    •Sheath material is PVC and halogen-free.

    •Not shielded, suitable for applications where shielding is not needed.

Specifications:

 Cable length 20 m
 Number of poles 3
 Core cross-section 0.25 mm²
 Outside diameter 4.5 mm ± 0.2 mm
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP67, IP68 when screwed in, IP65, IP66
 Insulation resistance 10^8 Ω
 Plugging cycles ≥ 100
 Housing main material PUR
 Threaded ring material Brass, nickel-plated
 Coding A-coded
 Connection thread M12 / M8
 Contact surface Gold-plated
