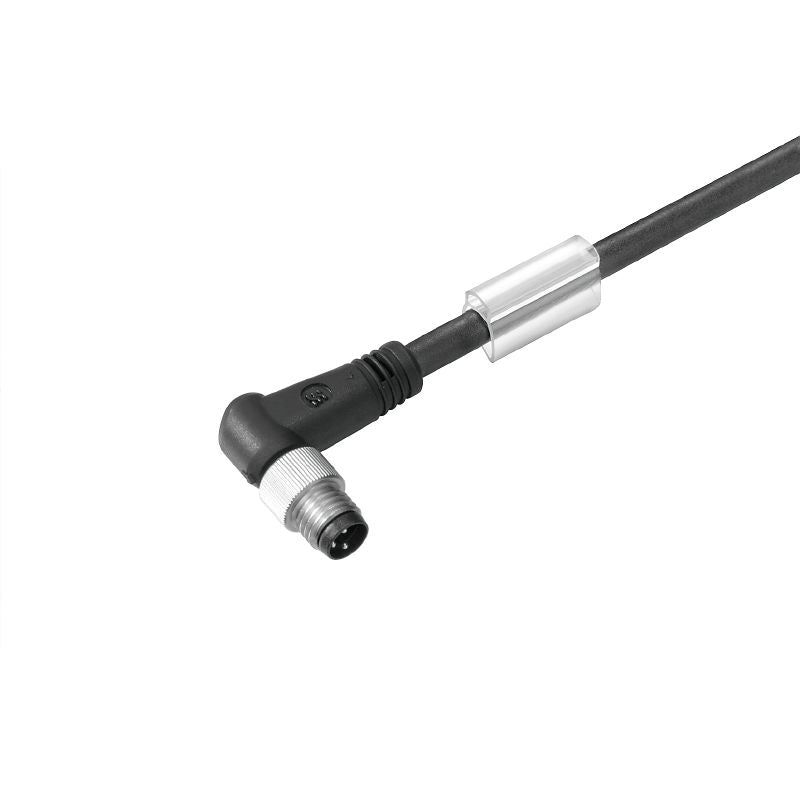

1927330300 - 3m M8 4-Pole Sensor/Actuator Line, No Connector

1927330300 - 3m M8 4-Pole Sensor/Actuator Line, No Connector

SKU: SKU: 1927330300

Select a Variant:
  • 1927330300 - 3m M8 4-Pole Sensor/Actuator Line, No Connector
Qty:
Regular price Now $7.99   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $7.99 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the convenience of this sensor/actuator cable line, featuring a connector-less design on one end and an M8 interface Measuring a generous 3 meters, it is tailored for easy installation without the need for shielding Constructed with a halogen-containing PVC outer sheath, this product is not equipped with an LED, making it a straightforward choice for your connectivity needs.

Features and Benefits:

    •Halogen content: Yes.

    •Connection thread: M8.

    •Type: pin, 90°.

    •General ordering data: available with order no. 1927330300.

    •Color coding: brown, white, blue, black.

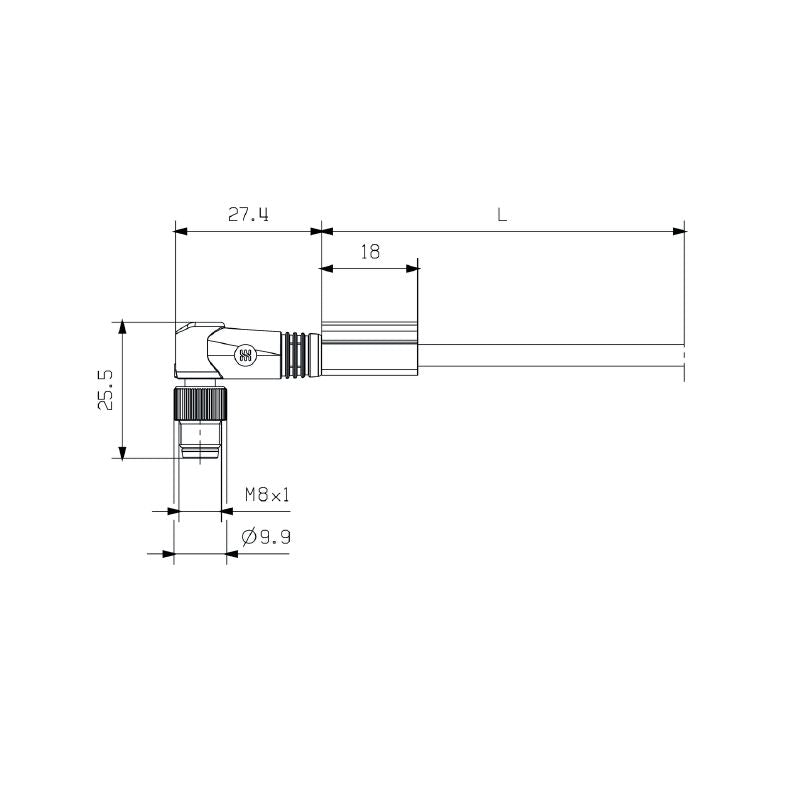

    •Plug left: M8, IP69, male contact, angled 90°, Plastic, unshielded.

    •Plug right: free conductor end.

Specifications:

 Cable length 3 m
 Core cross-section 0.25 mm²
 Outer cladding UL AWM style 2464 (80 °C / 300 V)
 Outside diameter 4.8 mm ± 0.2 mm
 Insulation PVC
 Nominal current 4 A
 Nominal voltage 30 V
 Plugging cycles ≥ 100
 Protection degree IP65, IP66, IP67, IP68
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Insulation resistance 10^8 Ω
 Threaded ring material Brass, nickel-plated
 Tightening torque M8: 0.5 - 0.6 Nm
