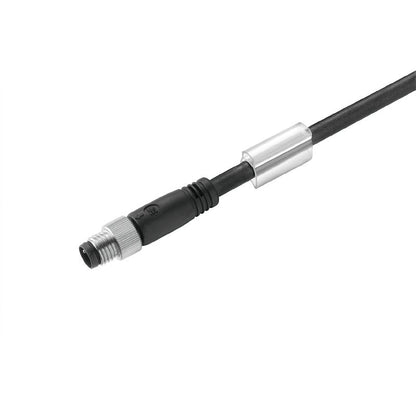

1927251000 - 10m PVC Sensor/Actuator Line with 4 Pins

1927251000 - 10m PVC Sensor/Actuator Line with 4 Pins

SKU: SKU: 1927251000

Variant:
  • 1927251000 - 10m PVC Sensor/Actuator Line with 4 Pins
Regular price Now $14.10
Regular price BEFORE   $0.00 Sale price Now $14.10
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIL-M8G-4-10V sensor/actuator line, featuring an impressive 10-meter length without a connector on one end This unshielded cable incorporates 4 pins arranged in a straight configuration and is made with halogen-containing PVC material It adheres to UL standards (certificate number E307231) and meets RoHS regulations, ensuring both safety and compliance for your projects.

Features and Benefits:

    •Four-pole configuration for effective connection.

    •Long cable length of 10 meters.

    •PVC sheath material offering durability.

    •Halogen-free construction.

    •Complies with RoHS and UL regulations.

Specifications:

 Cable length 10 m
 Core cross-section 0.25 mm²
 Outer diameter 4.8 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 30 V
 Temperature range, moving -5...80 °C
 Temperature range, stationary -30...80 °C
 Protection degree IP65, IP66, IP67, IP68
 Insulation resistance 10^8 Ω
 Connection thread M8
 Housing main material PUR
 Sheath material PVC
 Plugging cycles ≥ 100
